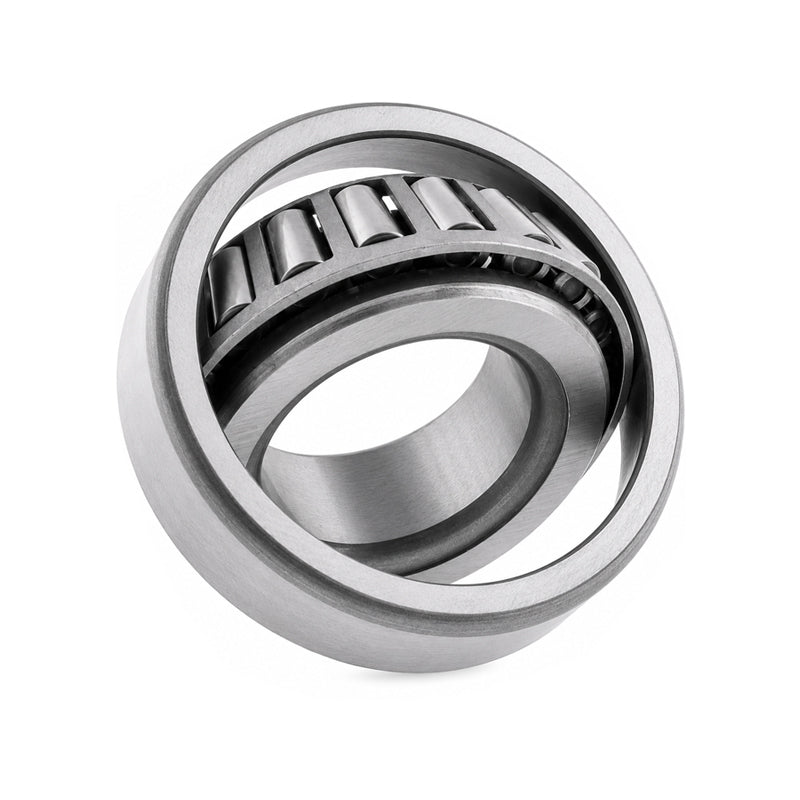

Timken 31324 Metric Taper Roller Bearing 120x260x68mm

Name: Timken 31324 Metric Taper Roller Bearing 120x260x68mm
Brand: Timken
SKU: 31324-TIM
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Metric Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: Timken - High Quality
Inside Diameter:: 120mm
Outside Diameter:: 260mm
Width:: 68mm

Technical

d	120mm
D	260mm
T	68mm
Dynamic load	539 kN
Static load	695 kN
Fatigue load limit Pu	73.5 kN
Reference speed	1700 rpm
Limiting speed	2400 rpm
Mass	15.5 kg
d1	190mm
B	62mm
C	42mm
r1r2 min	4mm
r3r4 min	3mm
a	78mm
da max	145mm
db min	135mm
Da min	203mm
Da max	245mm
Db min	244mm
Ca min	9mm
Cb min	26mm
ra max	3mm
rb max	2.5mm
e	0.83
Y	0.72
Y0	0.4
