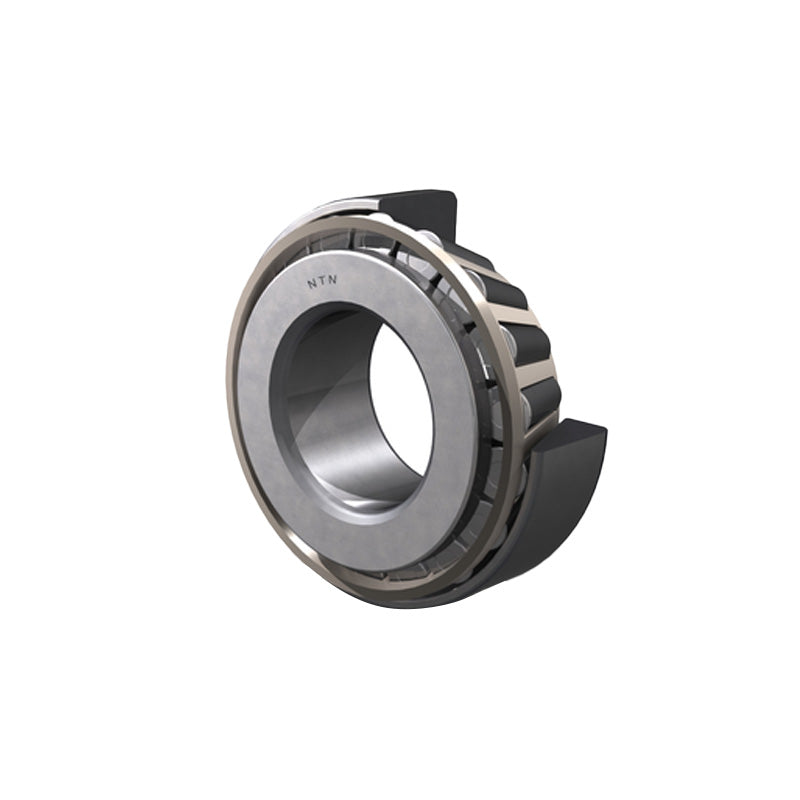

NTN 30344UTG Ultage Series Tapered Roller Bearing Cup and Cone Set 220x460x97mm

NTN 30344UTG Ultage Series Tapered Roller Bearing Cup and Cone Set 220x460x97mm

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 220mm
D 460mm
T 97mm
B 88mm
C 73mm
r<sub>s</sub> min 5mm
r<sub>ls</sub> min 5mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 1620kN
Static load C<sub>or</sub> 1690kN
Fatigue Load limit C<sub>u</sub> 142kN
Allowable Speed in grease 770rpm
Allowable Speed in oil 1100rpm
--- Abutment dimensions
d<sub>a</sub> min 242mm
d<sub>b</sub> max 270mm
D<sub>a</sub> max 438mm
D<sub>a</sub> min 383mm
D<sub>b</sub> min 418.5mm
S<sub>a</sub> min 4.2mm
S<sub>b</sub> min 24mm
r<sub>as</sub> max 4mm
r<sub>1as</sub> max 4mm
Load center a 86.5mm
Constant e 0.37mm
Y<sub>2</sub> 1.6mm
Y<sub>0</sub> 0.88mm
Weight 66.6kg
