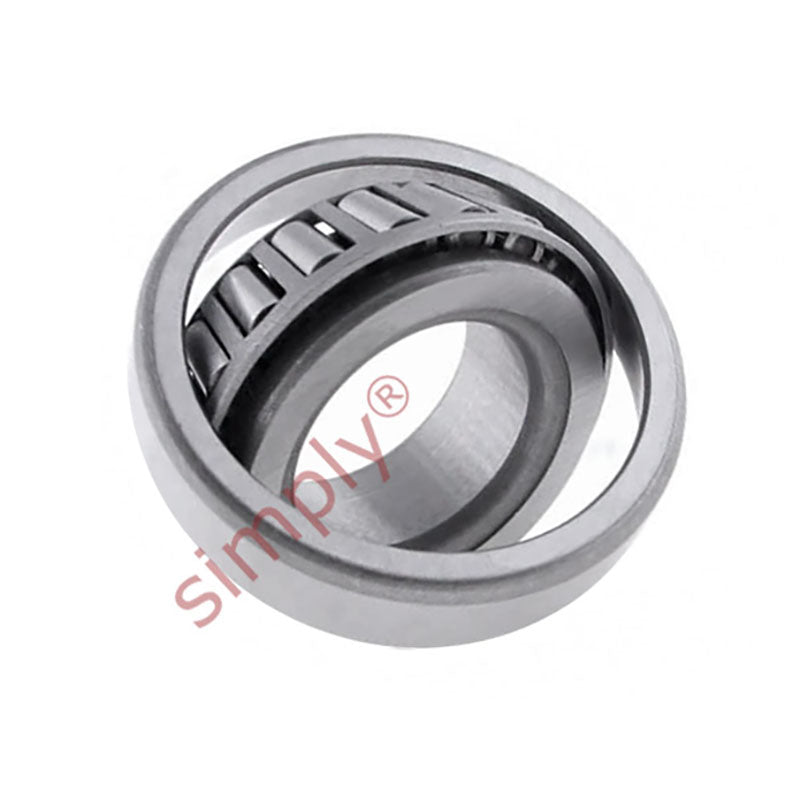

SKF 29685/2/29620/3/Q Imperial Taper Roller Bearing 2.875x4.4375x1 inches

Name: SKF 29685/2/29620/3/Q Imperial Taper Roller Bearing 2.875x4.4375x1 inches
Brand: SKF
SKU: 29685/2/29620/3/Q-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 73.03mm = 2.875 (2-7/8) inch
Outside Diameter:: 112.71mm = 4.437 (4-7/16) inch
Width:: 25.4mm = 1 inch
Seals / Shields:: None

Technical

d	73.025mm
D	112.712mm
T	25.4mm
Dynamic load	99 kN
Static load	156 kN
Fatigue load limit Pu	17.6 kN
Reference speed	4000 rpm
Limiting speed	6000 rpm
Weight	0.89 kg
d1	94.3mm
B	25.4mm
C	19.05mm
r1r2 min	3.5mm
r3r4 min	3.3mm
a	26mm
da max	82mm
db min	85mm
Da min	100mm
Da max	100mm
Db min	108mm
Ca min	4mm
Cb min	6mm
ra max	3mm
rb max	3mm
Calculation factor e	0.48
Calculation factor Y	1.25
Calculation factor Y0	0.7
