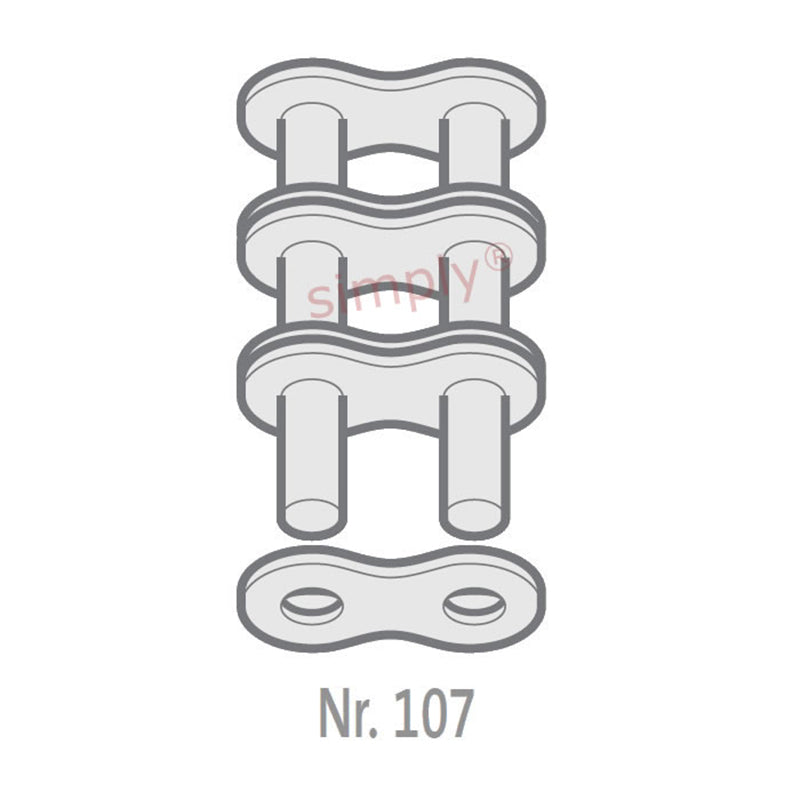

• Renold Blue Box 28B-3-NO107 BS Triplex Chain Outer Link To Be Riveted 1-3/4 inch Pitch
1 1

SKU: 28B-3-BB-NO107-RENOLD

Renold Blue Box 28B-3-NO107 BS Triplex Chain Outer Link To Be Riveted 1-3/4 inch Pitch

Renold Blue Box 28B-3-NO107 BS Triplex Chain Outer Link To Be Riveted 1-3/4 inch Pitch
$294.05 ex VAT
$294.05 ex VAT
Sale Sold out

In stock

Price Break
2+ $139.43
5+ $131.60
10+ $130.03
29+ $128.47
49+ $126.90
75+ $125.33
100+ $117.50
200+ $115.93
250+ $114.37
500+ $112.80
1000+ $109.67

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
BS_NO107T_DESC
Brand / Quality:
Renold - High Quality
Pitch:
44.45mm = 1.75 (1-3/4) inch
Technical
Pitch (A) 1.75 inch
Pitch (A) 44.45mm
Inside Width min (B) 30.99mm
Roller Diameter max (C) 27.94mm
Plate Height max (D) 37.08mm
Plate Width Inner max (E) 7.62mm
Plate Width Outer max (F) 6.35mm
Pin Diameter max (G) 15.9mm
Pin Length max (H2) 183.3mm
Connecting Link Extension max (J) 6.8mm
Transverse Pitch nom (K) 59.56mm
ISO606 Tensile Strength min 530000 N
Weight 0.27kg/m
