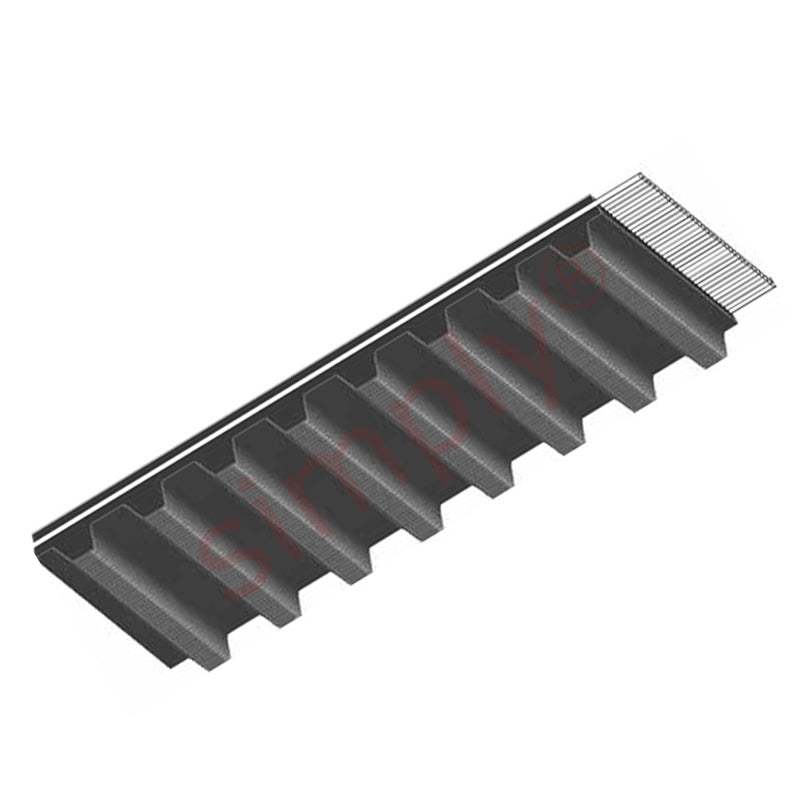

25T2.5/177 ContiTech Synchroflex Toothed Belt 25mm Wide 2.5mm Pitch 71 Teeth

SKU: 25T2.5/177

25T2.5/177 ContiTech Synchroflex Toothed Belt 25mm Wide 2.5mm Pitch 71 Teeth

$54.46 ex VAT
$54.46
ex VAT
Not in stock

Quantity Price Breaks

3 $48.47
5 $45.75
9 $45.20
19 $44.66
49 $44.11
74 $43.57
99 $40.85
199 $40.30
249 $39.76
499 $39.21
999 $38.12
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
25T2.5/177 ContiTech Synchroflex Toothed Belt 25mm Wide 2.5mm Pitch 71 Teeth
SKU: 25T2.5/177

25T2.5/177 ContiTech Synchroflex Toothed Belt 25mm Wide 2.5mm Pitch 71 Teeth

$54.46 ex VAT
$54.46
ex VAT

Description

Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous transmission throughout the entire field of drive technology. They enable purpose-made solutions to be realized effectively and economically.
Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers.
Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance.

Technical

No Teeth = 71
Width = 25mm
Tooth Pitch t = 2.5mm
Belt Length = 177.5mm
Belt Thickness h< = sub>
s< = /sub>
= 1.3mm
Tooth Height h< = sub>
t< = /sub>
= 0.7mm
Flank Angle = 40 deg
Tension member loadings = 312 Fadm(N)
Belt weight = 0.038kg/m
