SKU: 25580/25520/Q-SKF

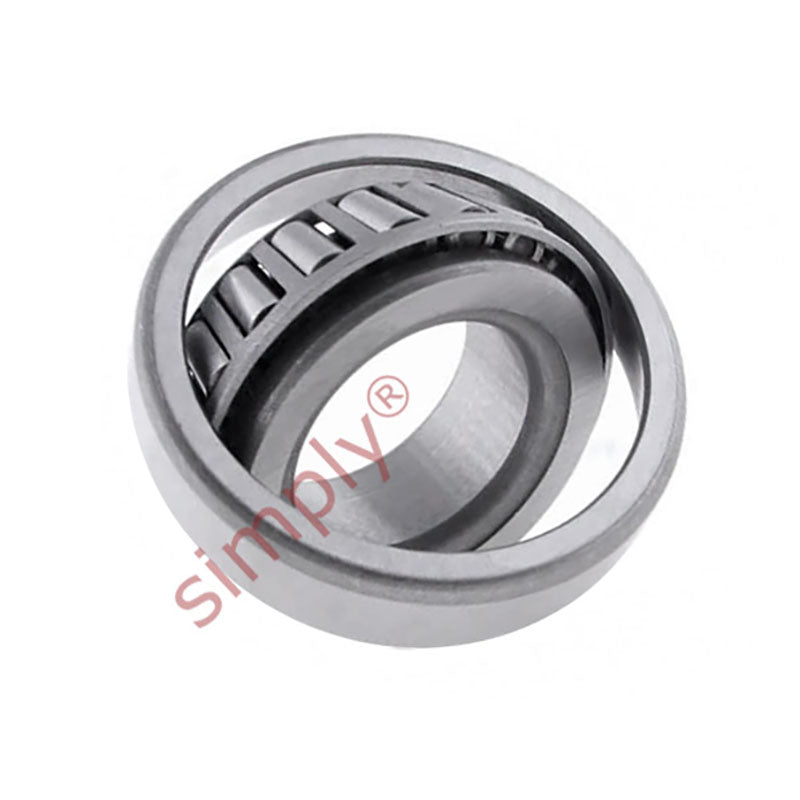

SKF 25580/25520/Q Imperial Taper Roller Bearing 1.75x3.265x0.9375 inches

Name: SKF 25580/25520/Q Imperial Taper Roller Bearing 1.75x3.265x0.9375 inches
Brand: SKF
SKU: 25580/25520/Q-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 44.45mm = 1.75 (1-3/4) inch
Outside Diameter:: 82.93mm = 3.265 inch
Width:: 23.81mm = 0.937 (15/16) inch
Seals / Shields:: None

Technical

d	44.45mm
D	82.931mm
T	23.812mm
Dynamic load	80.9 kN
Static load	106 kN
Fatigue load limit Pu	11.8 kN
Reference speed	6000 rpm
Limiting speed	9000 rpm
Weight	0.57 kg
d1	62.1mm
B	25.4mm
C	19.05mm
r1r2 min	3.5mm
r3r4 min	0.8mm
a	17mm
da max	53mm
db min	55.5mm
Da min	71mm
Da max	76mm
Db min	76mm
Ca min	5mm
Cb min	4.5mm
ra max	3mm
rb max	0.8mm
Calculation factor e	0.33
Calculation factor Y	1.8
Calculation factor Y0	1
