SKU: 24196-B-K30-MB-C3+AH24196-FAG

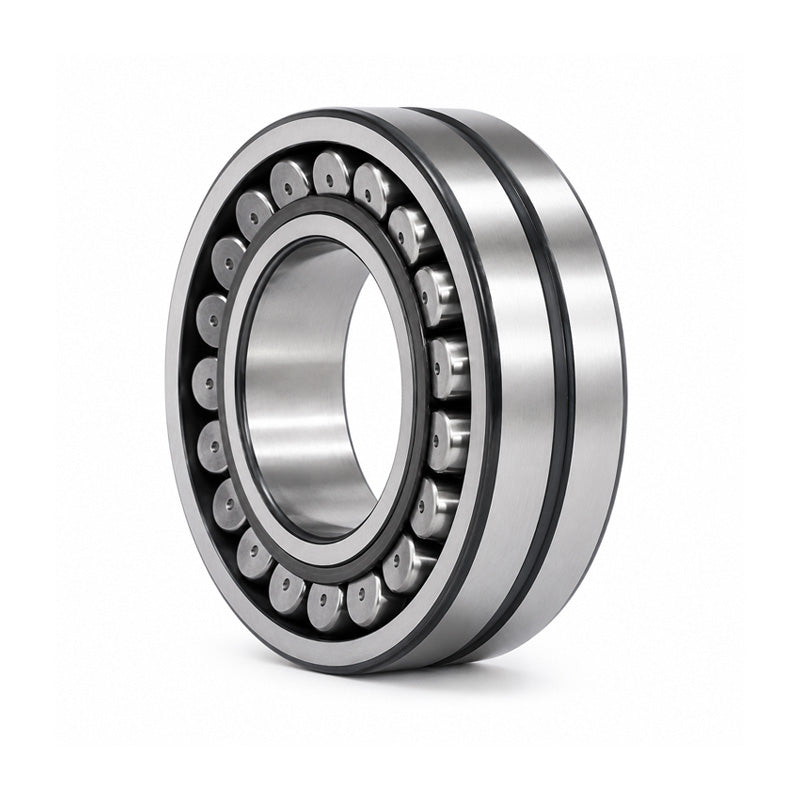

FAG 24196BK30MBC3 Spherical Roller Bearing with AH24196 Withdrawal Sleeve 460x790x308mm
FAG 24196BK30MBC3 Spherical Roller Bearing with AH24196 Withdrawal Sleeve 460x790x308mm
Out of stock
Description
Description
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 460mm
- Outside Diameter:
- 790mm
- Width:
- 308mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d1H | 460mm |
|---|---|
| d | 480mm |
| D | 790mm |
| B | 308mm |
| r min | 7.5mm |
| D1 | 669.9mm |
| ds | 12.5mm |
| ns | 23.5mm |
| a | 25mm |
| b | 35mm |
| Thread d2G | Tr500X5 |
| l | 343mm |
| da min | 512mm |
| Da max | 758mm |
| ra max | 6mm |
| Dynamic load Cr | 8000000 N |
| Static load C0r | 16600000 N |
| e | 0.39 |
| Y1 | 1.75 |
| Y2 | 2.61 |
| Y0 | 1.71 |
| Fatigue load limit Cur | 1190000 N |
| Limiting speed nG | 560 rpm |
| Reference speed nB | 213 rpm |
| Bearing weight | 700 kg |
| Withdrawal sleeve weight | 53.1 kg |
