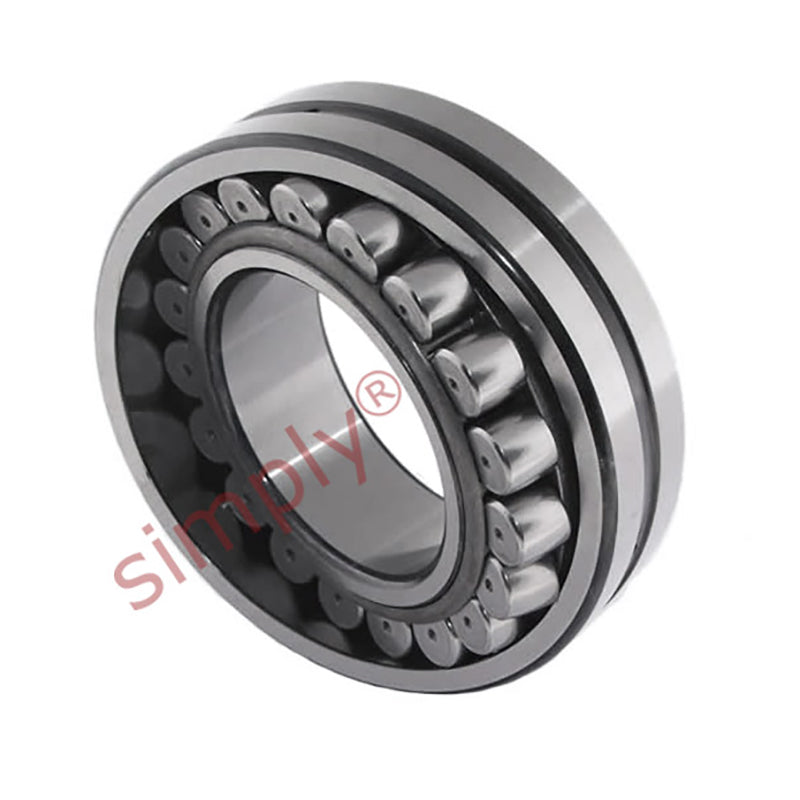

• Budget 23234/W33 Spherical Roller Bearing with Cylindrical Bore 170x310x110mm
1 1

SKU: 23234/W33-EU

Budget 23234/W33 Spherical Roller Bearing with Cylindrical Bore 170x310x110mm

Budget 23234/W33 Spherical Roller Bearing with Cylindrical Bore 170x310x110mm
$1,543.65 ex VAT
$1,543.65 ex VAT
Sale Sold out

In stock

Price Break
10+ $732.00
19+ $690.88
29+ $682.65
39+ $674.43
49+ $666.20
74+ $657.98
99+ $616.86
199+ $608.63
249+ $600.41
499+ $592.18
999+ $575.73

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SPHER1_DESC
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
170mm
Outside Diameter:
310mm
Width:
110mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Dimensions
d 170mm
D 310mm
B 110mm
d2 200mm
D1 261mm
b 13.9mm
K 7.5mm
r1r2 min 4mm
da min 187mm
Da max 293mm
ra max 3mm
--- Speeds, Loads and Weights
Dynamic Load Rating 1400kN
Static Load Rating 1930kN
Fatigue Load Limit 173kN
Reference Speed 1400rpm
Limit Speed 2000rpm
Weight 37.5kg
--- Factors
e 0.35
Y1 1.9
Y2 2.9
Y0 1.8
