SKU: 23220-E1A-K-Mu-FAG

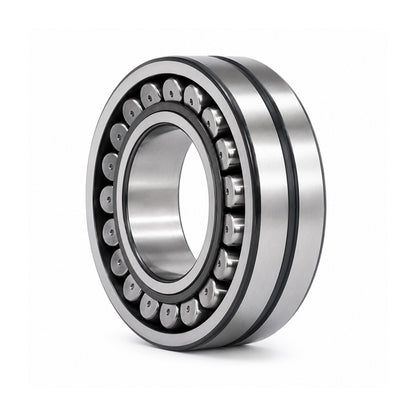

FAG 23220E1AKM X-life Spherical Roller Bearing with AHX3220 Withdrawal Sleeve 95x180x60.3mm
FAG 23220E1AKM X-life Spherical Roller Bearing with AHX3220 Withdrawal Sleeve 95x180x60.3mm
Regular price
$972.30
ex VAT
Regular price
Sale price
$972.30
ex VAT
In stock
Price Break
3+
$461.06
4+
$435.16
9+
$429.98
19+
$424.80
29+
$419.62
39+
$414.44
49+
$388.54
59+
$383.36
249+
$378.18
499+
$373.00
999+
$362.64
Quantity
Couldn't load pickup availability
Description
Description
SPHERWITHD_DESC
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 180mm
- Width:
- 60.3mm
- Seals / Shields:
- None
- Clearance:
- * Standard

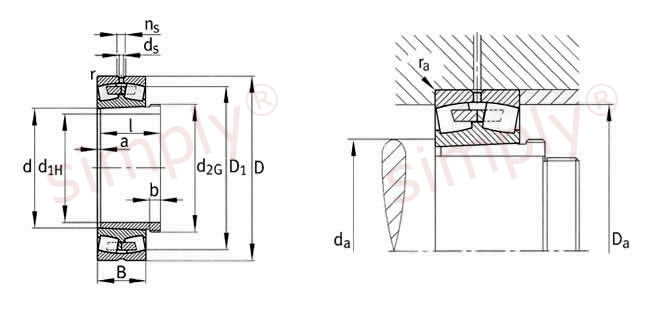

Technical
Technical
| d1H | 95mm |
|---|---|
| d | 100mm |
| D | 180mm |
| B | 60.3mm |
| r min | 2.1mm |
| D1 | 156.7mm |
| ds | 4.8mm |
| ns | 9.5mm |
| a | 4mm |
| b | 11mm |
| Thread d2G | M110X2 |
| l | 73mm |
| da min | 112mm |
| Da max | 168mm |
| ra max | 2.1mm |
| Dynamic load Cr | 550000 N |
| Static load C0r | 660000 N |
| e | 0.31 |
| Y1 | 2.15 |
| Y2 | 3.2 |
| Y0 | 2.1 |
| Fatigue load limit Cur | 60000 N |
| Limiting speed nG | 3600 rpm |
| Reference speed nB | 2410 rpm |
| Bearing weight | 6.33 kg |
| Withdrawal sleeve weight | 0.765 kg |
