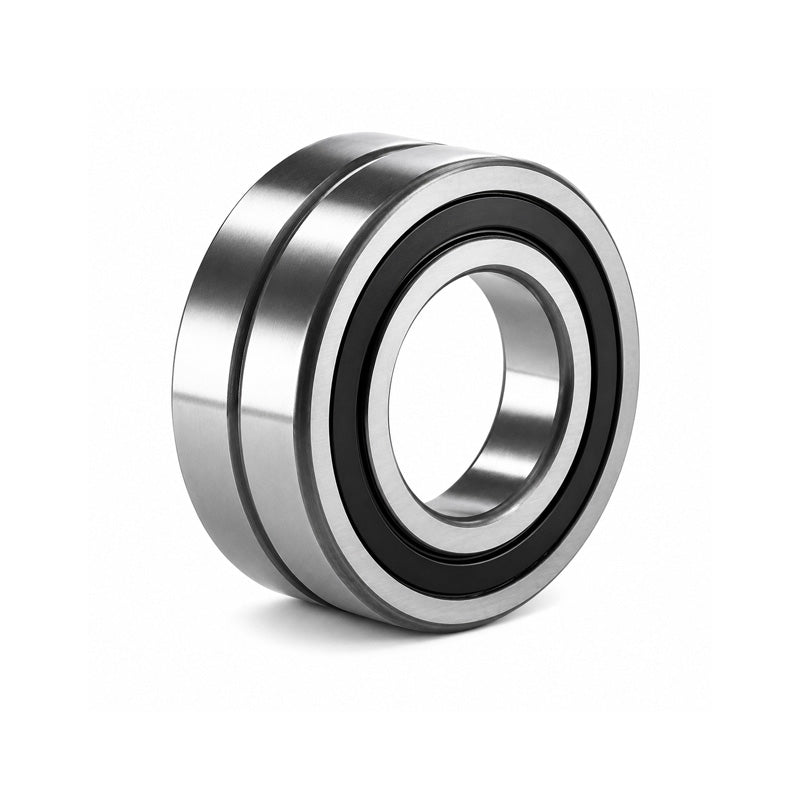

• SKF 232202CSVT143 Sealed Spherical Roller Bearing with Cylindrical Bore 100x180x60.3mm
1 1

SKU: 23220-2CS/VT143-SKF

SKF 232202CSVT143 Sealed Spherical Roller Bearing with Cylindrical Bore 100x180x60.3mm

SKF 232202CSVT143 Sealed Spherical Roller Bearing with Cylindrical Bore 100x180x60.3mm
$808.81 ex VAT
$808.81 ex VAT
Sale Sold out

Equivalent to: 232202RS/VT143

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SKF - High Quality
Inside Diameter:
100mm
Outside Diameter:
180mm
Width:
60.3mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
--- Dimensions
d 100mm
D 180mm
B 60.3mm
D1 161mm
d2 114mm
r1r2 min 2.1mm
b 8.3mm
K 4.5mm
da min 112mm
da max 114mm
Da max 168mm
ra max 2mm
--- Speeds, Loads and Weights
Dynamic load C 475 kN
Static load Co 600 kN
Fatigue load limit Pu 63 kN
Limiting speed 700 rpm
Weight 6.85 kg
--- Factors
Calculation factor e 0.3
Calculation factor Y1 2.3
Calculation factor Y2 3.4
Calculation factor Y0 2.2
Reviews
View full details
