SKU: 23196-K-MB-C3-FAG

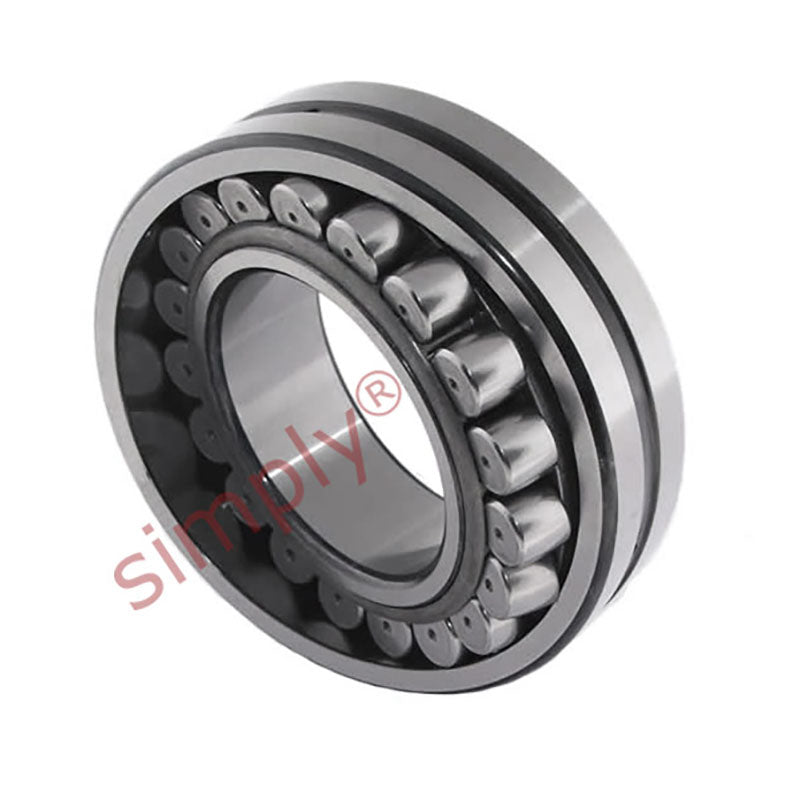

FAG 23196KMBC3 Spherical Roller Bearing with Taper Bore 480x790x248mm
FAG 23196KMBC3 Spherical Roller Bearing with Taper Bore 480x790x248mm
Equivalent to: 23196KC3
Out of stock
Description
Description
|
Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 480mm
- Outside Diameter:
- 790mm
- Width:
- 248mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Dimensions |
|---|---|
| d | 480mm |
| D | 790mm |
| B | 248mm |
| r min. | 7.5mm |
| D1 | 688.3mm |
| ds | 12.5mm |
| ns | 23.5mm |
| da min. | 512mm |
| Da max. | 758mm |
| ra max. | 6mm |
| --- | Loads, Speeds and Weights |
| Fatigue limit load | 570000 N |
| Limiting speed | 630 rpm |
| Reference speed | 370 rpm |
| Dynamic Load Rating | 6300000 N |
| Static Load Rating | 12700000 N |
| Mass | 470kg |
| --- | Factors |
| e | 0.32 |
| Y1 | 2.12 |
| Y2 | 3.15 |
| Y0 | 2.07 |
| --- | Matching Adaptor Sleeves |
| Sleeve No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=OH3196H+sleeve>OH3196H</a> |
| --- | Matching Withdrawal Sleeves |
| Sleeve No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AOHX3196G+sleeve>AOHX3196G</a> |
