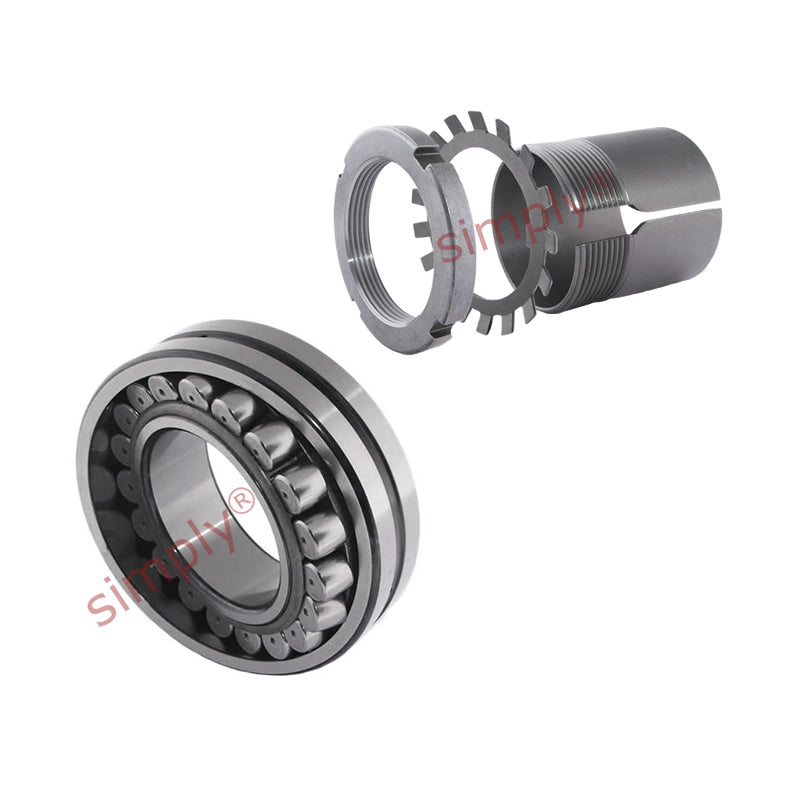

FAG 23188KMBC3 Spherical Roller Bearing with H3188 Adapter Sleeve 410x720x226mm
FAG 23188KMBC3 Spherical Roller Bearing with H3188 Adapter Sleeve 410x720x226mm
Out of stock
Description
Description
|
Spherical Roller Bearing with Adapter Sleeve: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. This bearing is supplied with an adapter sleeve. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 410mm
- Outside Diameter:
- 720mm
- Width:
- 226mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d1H | 410mm |
|---|---|
| d | 440mm |
| D | 720mm |
| B | 226mm |
| r min | 6mm |
| D1 | 626mm |
| ds | 12.5mm |
| ns | 23.5mm |
| Dm | 560mm |
| l | 307mm |
| c1 | 89mm |
| da max | 504mm |
| Da max | 694mm |
| db min | 463mm |
| Ba min | 17mm |
| ra max | 5mm |
| Dynamic load Cr | 5200000 N |
| Static load C0r | 10400000 N |
| e | 0.32 |
| Y1 | 2.1 |
| Y2 | 3.13 |
| Y0 | 2.06 |
| Fatigue load limit Cur | 485000 N |
| Limiting speed nG | 700 rpm |
| Reference speed nB | 425 rpm |
| Bearing weight | 378 kg |
| Adapter sleeve weight | 103 kg |
