SKU: 23188-K-MB+AHX3188G-FAG

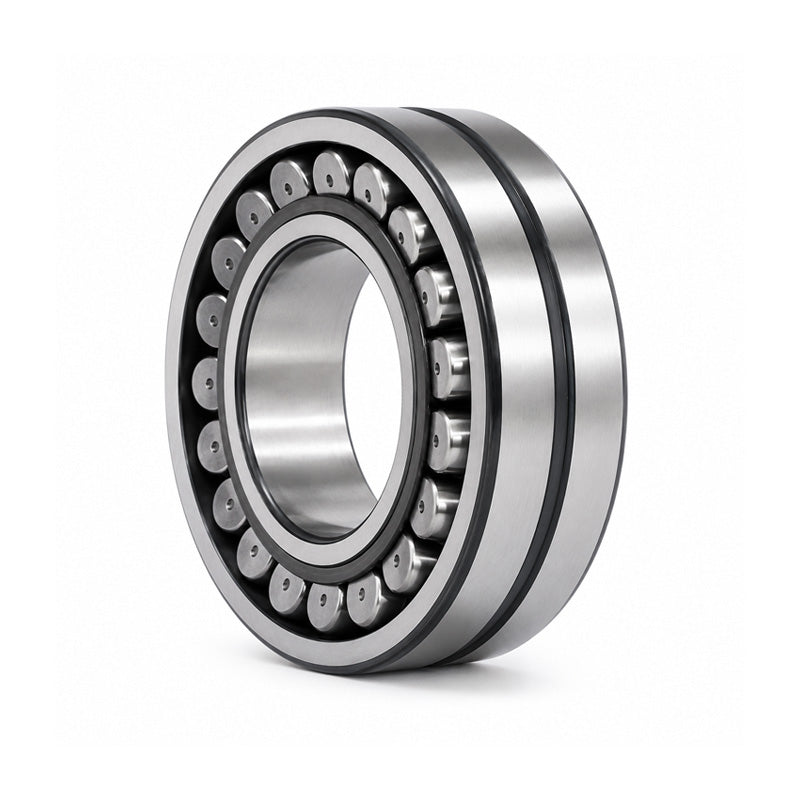

FAG 23188KMB Spherical Roller Bearing with AHX3188G Withdrawal Sleeve 420x720x226mm
FAG 23188KMB Spherical Roller Bearing with AHX3188G Withdrawal Sleeve 420x720x226mm
Out of stock
Description
Description
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 420mm
- Outside Diameter:
- 720mm
- Width:
- 226mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d1H | 420mm |
|---|---|
| d | 440mm |
| D | 720mm |
| B | 226mm |
| r min | 6mm |
| D1 | 626mm |
| ds | 12.5mm |
| ns | 23.5mm |
| a | 11mm |
| b | 42mm |
| Thread d2G | Tr460X5 |
| l | 270mm |
| da min | 466mm |
| Da max | 694mm |
| ra max | 5mm |
| Dynamic load Cr | 5200000 N |
| Static load C0r | 10400000 N |
| e | 0.32 |
| Y1 | 2.1 |
| Y2 | 3.13 |
| Y0 | 2.06 |
| Fatigue load limit Cur | 485000 N |
| Limiting speed nG | 700 rpm |
| Reference speed nB | 425 rpm |
| Bearing weight | 378 kg |
| Withdrawal sleeve weight | 45.3 kg |
