SKU: 23128-E1A-K-M+H3128-FAG
FAG 23128E1AKM X-life Spherical Roller Bearing with H3128 Adapter Sleeve 125x225x68mm
FAG 23128E1AKM X-life Spherical Roller Bearing with H3128 Adapter Sleeve 125x225x68mm
Regular price
$1,480.61
ex VAT
Regular price
Sale price
$1,480.61
ex VAT
In stock
Price Break
3+
$788.88
4+
$788.88
9+
$788.88
19+
$788.88
29+
$788.88
39+
$788.88
49+
$788.88
59+
$788.88
249+
$788.88
499+
$788.88
999+
$788.88
Quantity
Couldn't load pickup availability
Description
Description
|
Spherical Roller Bearing with Adapter Sleeve: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. This bearing is supplied with an adapter sleeve. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 125mm
- Outside Diameter:
- 225mm
- Width:
- 68mm
- Seals / Shields:
- None
- Clearance:
- * Standard

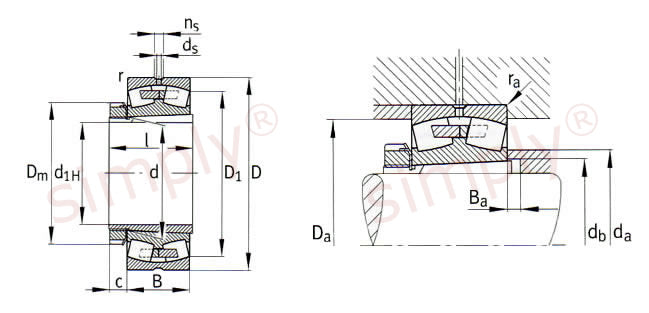

Technical
Technical
| d1H | 125mm |
|---|---|
| d | 140mm |
| D | 225mm |
| B | 68mm |
| r min | 2.1mm |
| D1 | 201mm |
| ds | 4.8mm |
| ns | 9.5mm |
| Dm | 180mm |
| l | 97mm |
| c | 24mm |
| da max | 159mm |
| Da max | 213mm |
| db min | 149mm |
| Ba min | 8mm |
| ra max | 2.1mm |
| Dynamic load Cr | 760000 N |
| Static load C0r | 1010000 N |
| e | 0.27 |
| Y1 | 2.49 |
| Y2 | 3.71 |
| Y0 | 2.43 |
| Fatigue load limit Cur | 88000 N |
| Limiting speed nG | 2800 rpm |
| Reference speed nB | 1930 rpm |
| Bearing weight | 7.78 kg |
| Adapter sleeve weight | 4.33 kg |
