• Budget 23040/W33 Spherical Roller Bearing with Cylindrical Bore 200x310x82mm
1 1

SKU: 23040/W33-EU

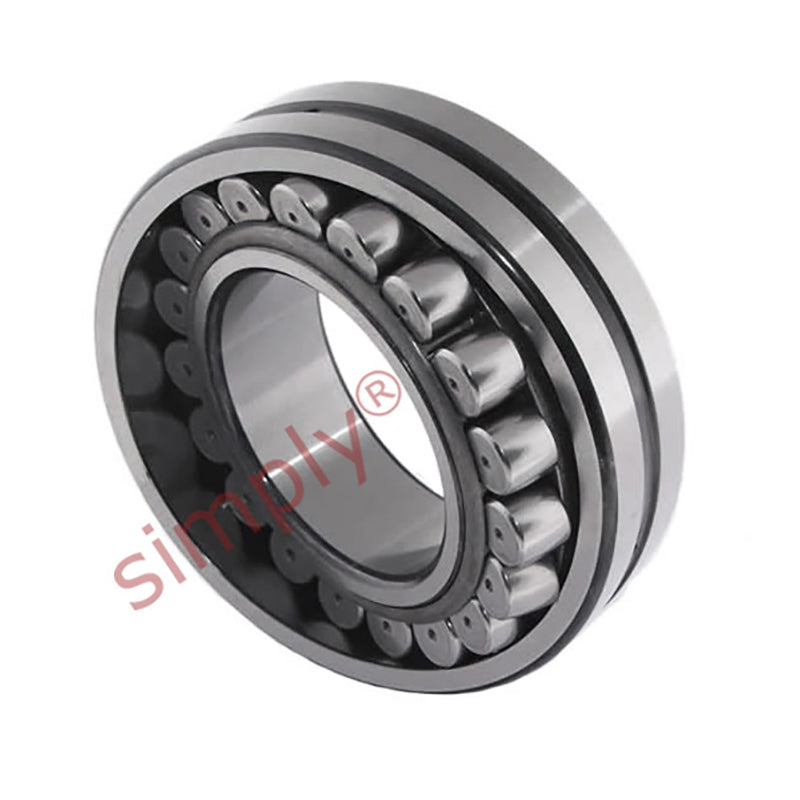

Budget 23040/W33 Spherical Roller Bearing with Cylindrical Bore 200x310x82mm

Budget 23040/W33 Spherical Roller Bearing with Cylindrical Bore 200x310x82mm
$1,048.76 ex VAT
$1,048.76 ex VAT
Sale Sold out

In stock

Price Break
10+ $497.32
19+ $469.38
29+ $463.79
39+ $458.21
49+ $452.62
74+ $447.03
99+ $419.09
199+ $413.50
249+ $407.91
499+ $402.33
999+ $391.15

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SPHER1_DESC
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
200mm
Outside Diameter:
310mm
Width:
82mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Dimensions
d 200mm
D 310mm
B 82mm
d2 228mm
D1 278mm
b 13.9mm
K 7.5mm
r1r2 min 2.1mm
da min 211mm
Da max 299mm
ra max 2mm
--- Speeds, Loads and Weights
Dynamic Load Rating 1000kN
Static Load Rating 1530kN
Fatigue Load Limit 137kN
Reference Speed 1800rpm
Limit Speed 2200rpm
Weight 23.3kg
--- Factors
e 0.24
Y1 2.8
Y2 4.2
Y0 2.8
