• SKF 22332CCW33 Spherical Roller Bearing with Cylindrical Bore with Steel Cage 160x340x114mm
1 1

SKU: 22332CC/W33-SKF

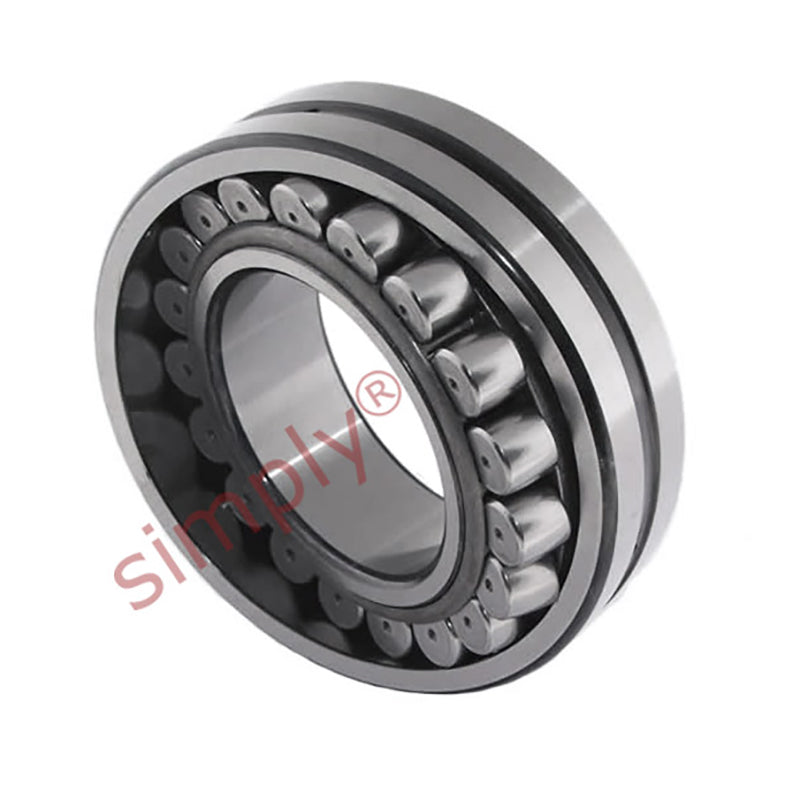

SKF 22332CCW33 Spherical Roller Bearing with Cylindrical Bore with Steel Cage 160x340x114mm

SKF 22332CCW33 Spherical Roller Bearing with Cylindrical Bore with Steel Cage 160x340x114mm
$3,623.40 ex VAT
$3,623.40 ex VAT
Sale Sold out

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SKF - High Quality
Inside Diameter:
160mm
Outside Diameter:
340mm
Width:
114mm
Clearance:
* Standard
Technical
--- Dimensions
d 160mm
D 340mm
B 114mm
D1 282mm
d2 200mm
r1r2 min 4mm
b 16.7mm
K 9mm
da min 177mm
Da max 323mm
ra max 3mm
--- Speeds, Loads and Weights
Dynamic load C 1600 kN
Static load Co 1960 kN
Fatigue load limit Pu 160 kN
Reference speed 1500 rpm
Limiting speed 1900 rpm
Weight 52 kg
--- Factors
Calculation factor e 0.35
Calculation factor Y1 1.9
Calculation factor Y2 2.9
Calculation factor Y0 1.8
