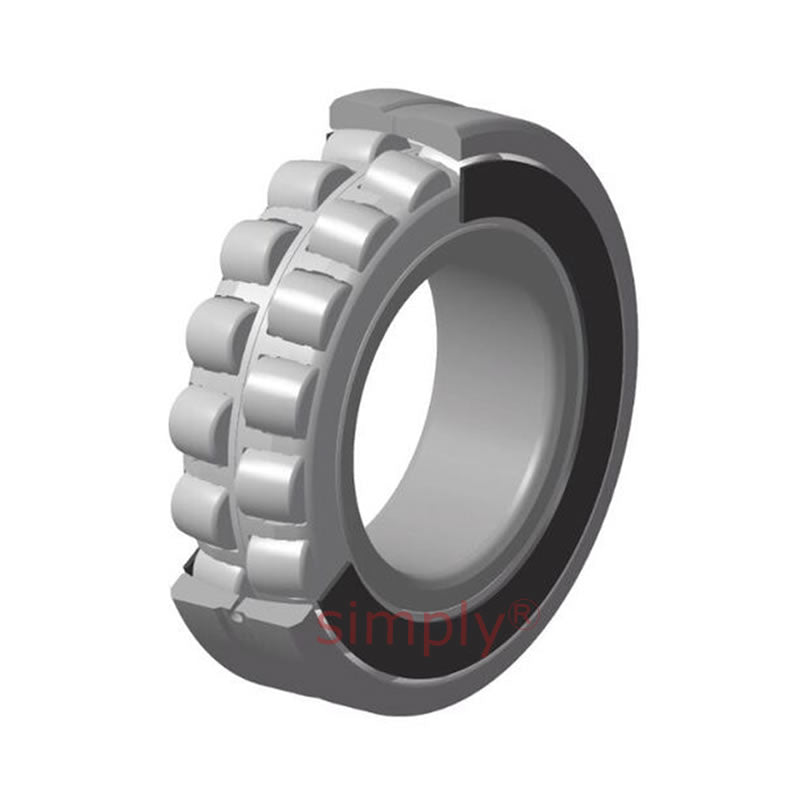

• SNR 22218EAKW33ZZ Metal Shielded Spherical Roller Bearing with Tapered Bore 90x160x40mm Allow 1 - 2 Days
1 1

SKU: 22218EAKW33ZZ-SNR

SNR 22218EAKW33ZZ Metal Shielded Spherical Roller Bearing with Tapered Bore 90x160x40mm Allow 1 - 2 Days

SNR 22218EAKW33ZZ Metal Shielded Spherical Roller Bearing with Tapered Bore 90x160x40mm Allow 1 - 2 Days
$459.47 ex VAT
$459.47 ex VAT
Sale Sold out

Equivalent to: 22218KZZ

In stock

Price Break
3+ $217.89
5+ $205.64
9+ $203.20
19+ $200.75
49+ $198.30
74+ $195.85
99+ $183.61
199+ $181.16
249+ $178.71
499+ $176.27
999+ $171.37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
VC58RI90ZT
Brand / Quality:
SNR - NTN - Premium Quality
Inside Diameter:
90mm
Outside Diameter:
160mm
Width:
40mm
Seals / Shields:
Metal Shielded
Item Type:
Metal Shielded Spherical Roller Bearing
Technical
--- Bearing dimensions
d 90mm
D 160mm
B 40mm
rs 2mm
D1 143.2mm
d2 105.3mm
b 10.2mm
k 4.5mm
--- Abutment dimensions
da min 101mm
Da Max 149mm
ra max 2mm
Dynamic load Cr 384kN
Static load Cor 398kN
Fatigue load Cu 43.1kn
--- Calculation factors
e 0.23
Y1 2.9
Y2 4.31
YO 2.83
--- Speeds and other information
Reference speed 3900rpm
Limiting speed 5100rpm
Internal clearance min 80μm
Internal clearance max 110μm
Initial grease addition mm<sup>3</sup> 34677
Lowest operating temperature - 40deg C
Highest operating temperature + 200deg C
Ultage series bearing Yes
Weight 3.32kg
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H318+sleeve>H318</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HA318+sleeve>HA318</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE318+sleeve>HE318</a>
--- Matching Withdrawal Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AHX318+sleeve>AHX318</a>
