• SNR 22210EAW33ZZ Metal Shielded Spherical Roller Bearing with Cylindrical Bore 50x90x23mm Allow 1 - 2 Days
1 1

SKU: 22210EAW33ZZ-SNR

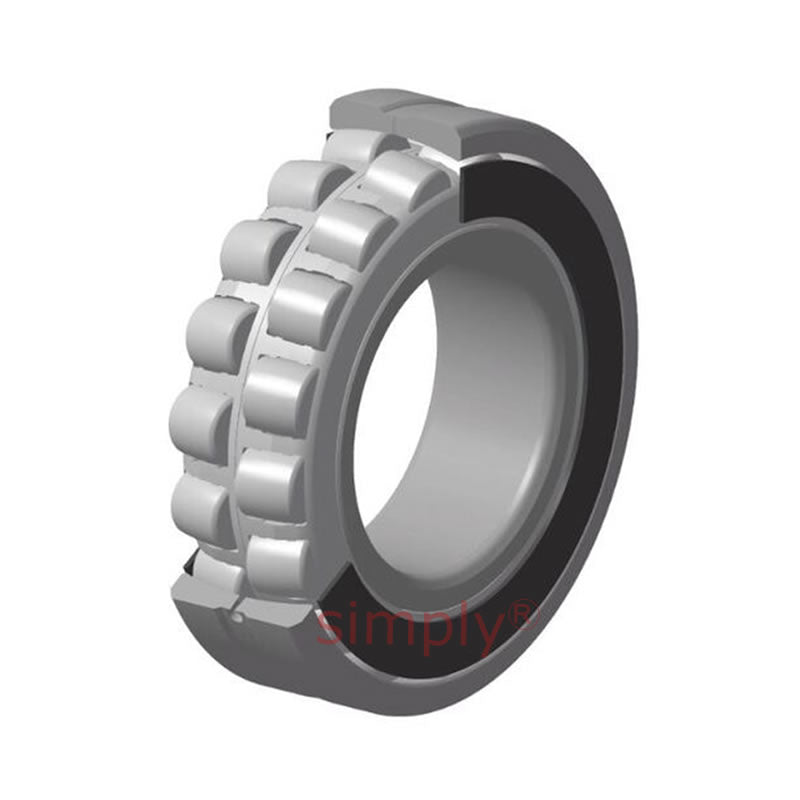

SNR 22210EAW33ZZ Metal Shielded Spherical Roller Bearing with Cylindrical Bore 50x90x23mm Allow 1 - 2 Days

SNR 22210EAW33ZZ Metal Shielded Spherical Roller Bearing with Cylindrical Bore 50x90x23mm Allow 1 - 2 Days
$180.97 ex VAT
$180.97 ex VAT
Sale Sold out

In stock

Price Break
3+ $85.81
5+ $80.99
9+ $80.03
19+ $79.06
49+ $78.10
74+ $77.14
99+ $72.31
199+ $71.35
249+ $70.39
499+ $69.42
999+ $67.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
VC58RI90ZT
Brand / Quality:
SNR - NTN - Premium Quality
Inside Diameter:
50mm
Outside Diameter:
90mm
Width:
23mm
Seals / Shields:
Metal Shielded
Item Type:
Metal Shielded Spherical Roller Bearing
Technical
--- Bearing dimensions
d 50mm
D 90mm
B 23mm
rs 1.1mm
D1 80.7mm
d2 59.5mm
b 5.8mm
k 2.5mm
--- Abutment dimensions
da min 57mm
Da Max 83mm
ra max 1mm
Dynamic load Cr 130kN
Static load Cor 124kN
Fatigue load Cu 14.5kn
--- Calculation factors
e 0.24
Y1 2.84
Y2 4.23
YO 2.78
--- Speeds and other information
Reference speed 6700rpm
Limiting speed 9100rpm
Internal clearance min 35μm
Internal clearance max 55μm
Initial grease addition mm<sup>3</sup> 6699
Lowest operating temperature - 40deg C
Highest operating temperature + 200deg C
Ultage series bearing Yes
Weight 0.63kg
