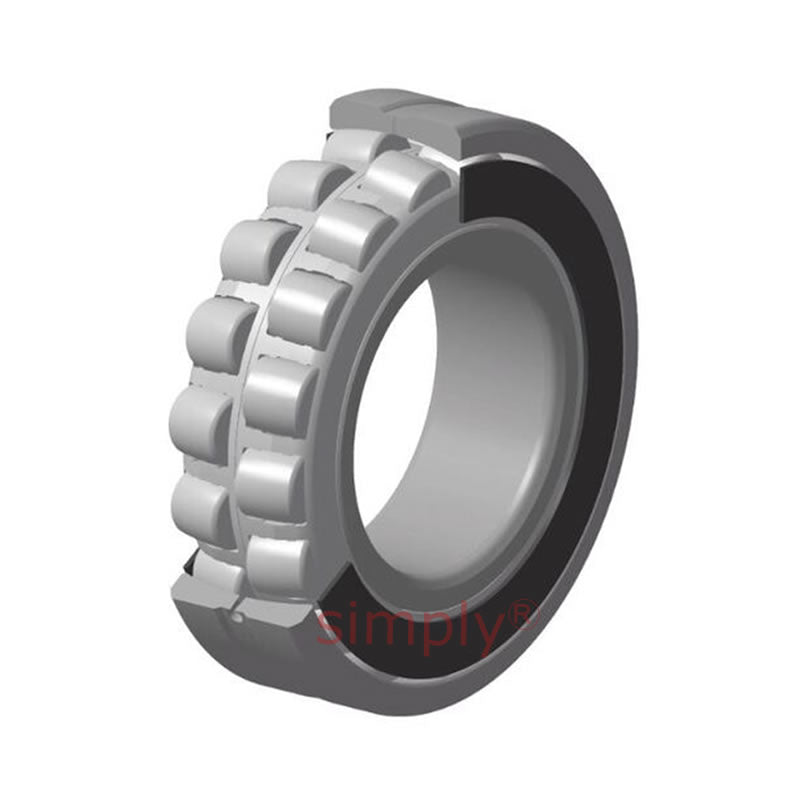

• SNR 22209EAKW33ZZ Metal Shielded Spherical Roller Bearing with Tapered Bore 45x85x23mm Allow 1 - 2 Days
1 1

SKU: 22209EAKW33ZZ-SNR

SNR 22209EAKW33ZZ Metal Shielded Spherical Roller Bearing with Tapered Bore 45x85x23mm Allow 1 - 2 Days

SNR 22209EAKW33ZZ Metal Shielded Spherical Roller Bearing with Tapered Bore 45x85x23mm Allow 1 - 2 Days
$177.42 ex VAT
$177.42 ex VAT
Sale Sold out

Equivalent to: 22209KZZ

In stock

Price Break
3+ $84.13
5+ $79.41
9+ $78.46
19+ $77.51
49+ $76.57
74+ $75.62
99+ $70.90
199+ $69.95
249+ $69.01
499+ $68.06
999+ $66.17

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
VC58RI90ZT
Brand / Quality:
SNR - NTN - Premium Quality
Inside Diameter:
45mm
Outside Diameter:
85mm
Width:
23mm
Seals / Shields:
Metal Shielded
Item Type:
Metal Shielded Spherical Roller Bearing
Technical
--- Bearing dimensions
d 45mm
D 85mm
B 23mm
rs 1.1mm
D1 75.6mm
d2 54.9mm
b 5.8mm
k 2.5mm
--- Abutment dimensions
da min 52mm
Da Max 78mm
ra max 1mm
Dynamic load Cr 121kN
Static load Cor 113kN
Fatigue load Cu 12.6kn
--- Calculation factors
e 0.26
Y1 2.64
Y2 3.94
YO 2.58
--- Speeds and other information
Reference speed 7400rpm
Limiting speed 9800rpm
Internal clearance min 45μm
Internal clearance max 60μm
Initial grease addition mm<sup>3</sup> 6194
Lowest operating temperature - 40deg C
Highest operating temperature + 200deg C
Ultage series bearing Yes
Weight 0.58kg
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H309+sleeve>H309</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HA309+sleeve>HA309</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE309+sleeve>HE309</a>
--- Matching Withdrawal Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AH309+sleeve>AH309</a>
