SKU: 2209E-2RS1KTN9-SKF

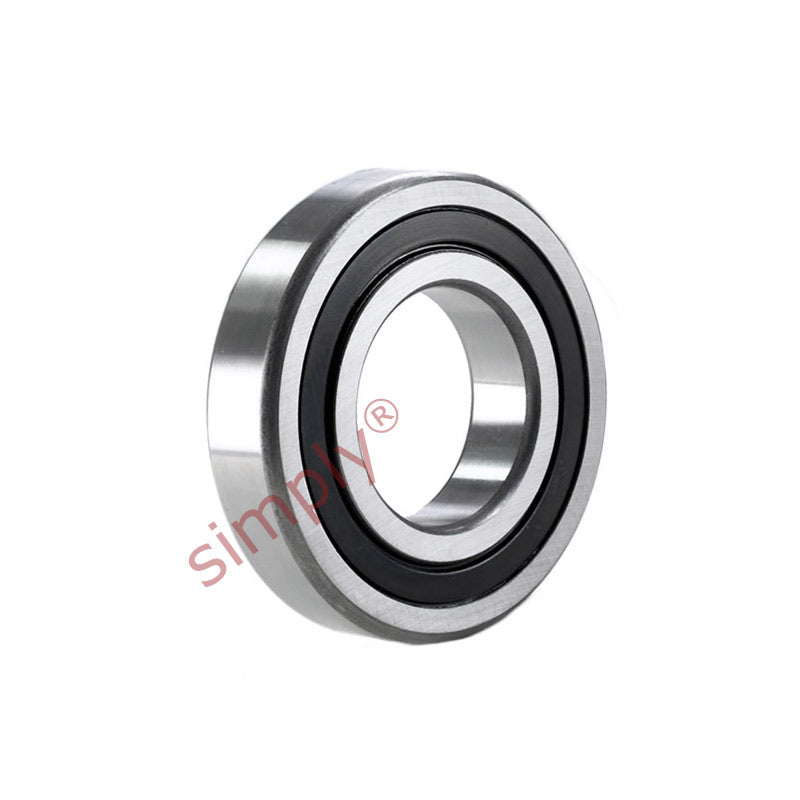

SKF 2209E2RS1KTN9 Taper Bore Rubber Sealed Self Aligning Ball Bearing for use with Adaptor Sleeve 45x85x23mm
SKF 2209E2RS1KTN9 Taper Bore Rubber Sealed Self Aligning Ball Bearing for use with Adaptor Sleeve 45x85x23mm
Regular price
$135.11
ex VAT
Regular price
Sale price
$135.11
ex VAT
Equivalent to: 2209E-2RS1EKTN9
In stock
Price Break
10+
$64.07
19+
$60.47
29+
$59.75
39+
$59.03
49+
$58.31
74+
$57.60
99+
$54.00
199+
$53.28
249+
$52.56
499+
$51.84
999+
$50.40
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Rubber Sealed Self Aligning Ball Bearings: This bearing series has two rows of balls running on the same spherical outer raceway, this makes the bearing self aligning, self centering and insensitive to angular misalignment. They are particularly suited to applications where considerable shaft deflections are anticipated. Self aligning ball bearings have the lowest rolling friction of all rolling bearings and are the coolest running bearing type even at high speeds. Supplied with two rubber seals this provided protection from the surrounding environment but limits the amount of self alignment Benefits: Tolerates misalignment, cool running, self centering |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 23mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| B | 23mm |
| Dynamic load C | 22.9 kN |
| Static load Co | 7.8 kN |
| Fatigue load limit Pu | 0.4 kN |
| Limiting speed | 5300 rpm |
| Weight | 0.76 kg |
| d3 | 65mm |
| D1 | 75.3mm |
| B1 | 39mm |
| B2 | 12mm |
| r1r2 min | 1.1mm |
| da max | 53mm |
| db min | 50mm |
| Da max | 78mm |
| Ba min | 8mm |
| ra max | 1mm |
| Calculation factor e | 0.21 |
| Calculation factor Y0 | 3.2 |
| Calculation factor Y1 | 3 |
| Calculation factor Y2 | 4.6 |
