SKU: 207KRRB12-MB

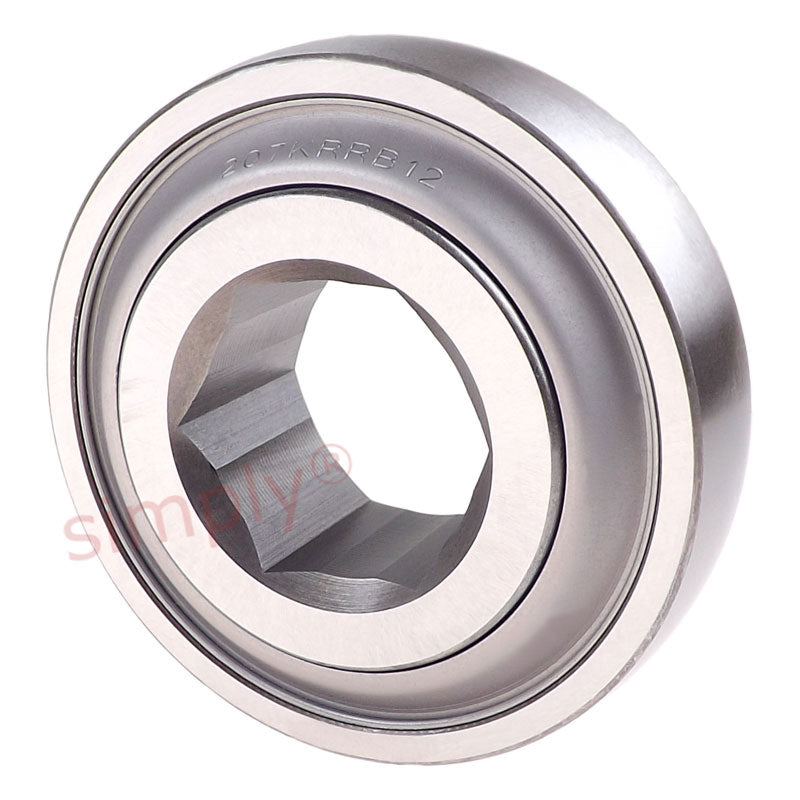

207KRRB12 Budget Auger Hex Bore Bearing 1.126x2.8346x0.984 inch - Allow 2-3 Days
207KRRB12 Budget Auger Hex Bore Bearing 1.126x2.8346x0.984 inch - Allow 2-3 Days
Equivalent to: HPS102GPE, AN102010, 156816C91, 9-90321
Out of stock
Description
Description
Seal Type: R, RST
Typical Application: Lawn and Garden Applications
Typical Environment: Less Contaminative Environment
Contamination Exclusion: Mild/Moderate
Speed Limit: Basic BRG. Size < 205: 3500 RPM, Basic BRG. Size > 205: 2000 RPM
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 28.6mm = 1.126 inch
- Outside Diameter:
- 71.99mm = 2.834 inch
- Width:
- 24.99mm = 0.984 (63/64) inch
Technical
Technical
| d | 1.126 inch = 28.6004mm (Tolerance +.0000 to minus 0.005) |
|---|---|
| D | 2.8346 inch = 71.99884mm (Tolerance +.0000 to minus 0.0005) |
| Bi | 0.984 inch = 24.9936mm |
| Be | 0.669 inch = 16.9926mm |
| Be & Bi | (Tolerance +.0000 to minus 0.005) |
| Seal/Shield Type | R Seal |
| Load Ratings Dynamic | 5770 lbf |
| Load Ratings Static | 3150 lbf |
