• NTN 1R9X12X12 Needle Roller Inner Race 9x12x12mm
1 1

SKU: 1R9X12X12-NTN

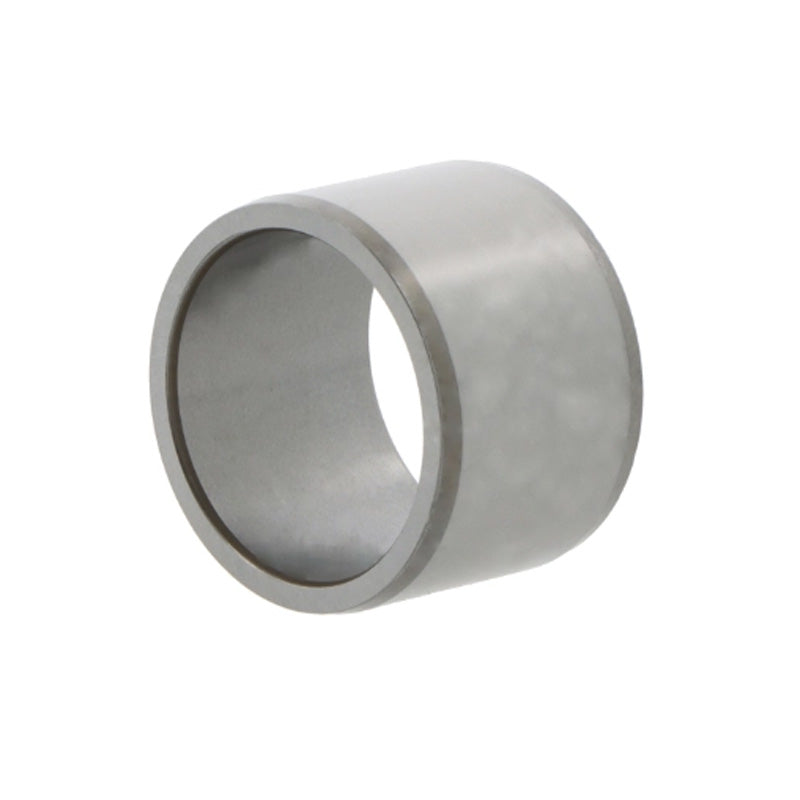

NTN 1R9X12X12 Needle Roller Inner Race 9x12x12mm

NTN 1R9X12X12 Needle Roller Inner Race 9x12x12mm
$9.97 ex VAT
$9.97 ex VAT
Sale Sold out

In stock

Price Break
3+ $4.73
4+ $4.46
9+ $4.41
19+ $4.35
49+ $4.30
99+ $4.25
499+ $3.98
999+ $3.93
1999+ $3.88
2999+ $3.82
4999+ $3.72

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
JWXGKWRH8Y
Brand / Quality:
NTN - High Quality
Inside Diameter:
9mm
Outside Diameter:
12mm
Width:
12mm
Technical
d - Inside diameter 9mm
F - Outside diameter 12mm
B - Width 12mm
r - Minimum fillet radius 0.3mm
Lubrication hole on inner ring? No
t - Chamfer length 2.5mm
Precision class P0
da min - Minimum shoulder diameter 11mm
ras max - Maximum shaft & housing filler radius 0.3mm
