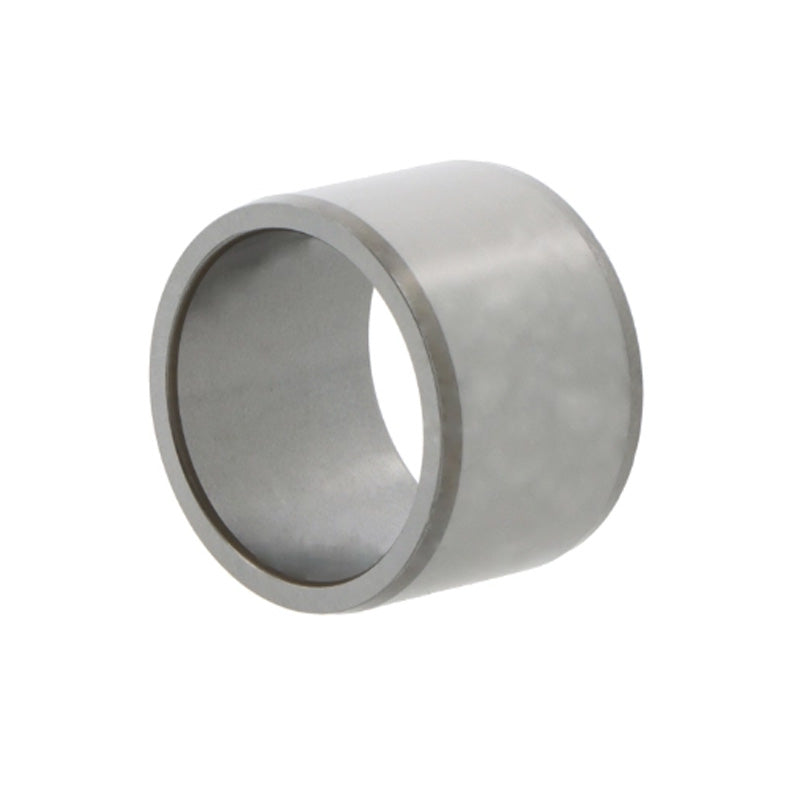

• NTN 1R15X20X13 Needle Roller Inner Race 15x20x13mm
1 1

SKU: 1R15X20X13-NTN

NTN 1R15X20X13 Needle Roller Inner Race 15x20x13mm

NTN 1R15X20X13 Needle Roller Inner Race 15x20x13mm
$12.27 ex VAT
$12.27 ex VAT
Sale Sold out

In stock

Price Break
3+ $5.82
4+ $5.49
9+ $5.43
19+ $5.36
49+ $5.30
99+ $5.23
499+ $4.91
999+ $4.84
1999+ $4.77
2999+ $4.71
4999+ $4.58

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
JWXGKWRH8Y
Brand / Quality:
NTN - High Quality
Inside Diameter:
15mm
Outside Diameter:
20mm
Width:
13mm
Technical
d - Inside diameter 15mm
F - Outside diameter 20mm
B - Width 13mm
r - Minimum fillet radius 0.3mm
Lubrication hole on inner ring? No
t - Chamfer length 1.5mm
Precision class P0
da min - Minimum shoulder diameter 17mm
ras max - Maximum shaft & housing filler radius 0.3mm
