SKU: 1982F/1924A/QVQ519-SKF

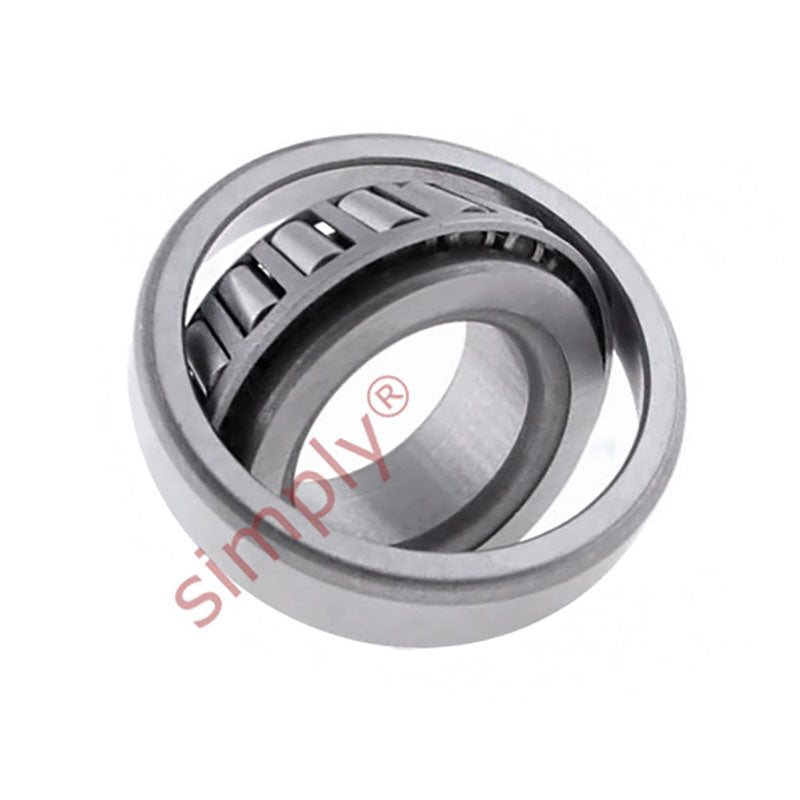

SKF 1982F/1924A/QVQ519 Imperial Taper Roller Bearing 1.0826x2.25x0.7813 inches

Name: SKF 1982F/1924A/QVQ519 Imperial Taper Roller Bearing 1.0826x2.25x0.7813 inches
Brand: SKF
SKU: 1982F/1924A/QVQ519-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 27.5mm = 1.083 inch
Outside Diameter:: 57.15mm = 2.25 (2-1/4) inch
Width:: 19.84mm = 0.781 (25/32) inch
Seals / Shields:: None

Technical

d	27.5mm
D	57.15mm
T	19.845mm
Dynamic load	45.7 kN
Static load	51 kN
Fatigue load limit Pu	5.6 kN
Reference speed	9000 rpm
Limiting speed	13000 rpm
Weight	0.22 kg
d1	42mm
B	20.165mm
C	15.875mm
r1r2 min	2.5mm
r3r4 min	0.8mm
a	14mm
da max	35mm
db min	36.5mm
Da min	49mm
Da max	52mm
Db min	54mm
Ca min	3mm
Cb min	3.5mm
ra max	2.5mm
rb max	0.8mm
Calculation factor e	0.33
Calculation factor Y	1.8
Calculation factor Y0	1
