SKU: 16x24x5.7_UNP_NAK

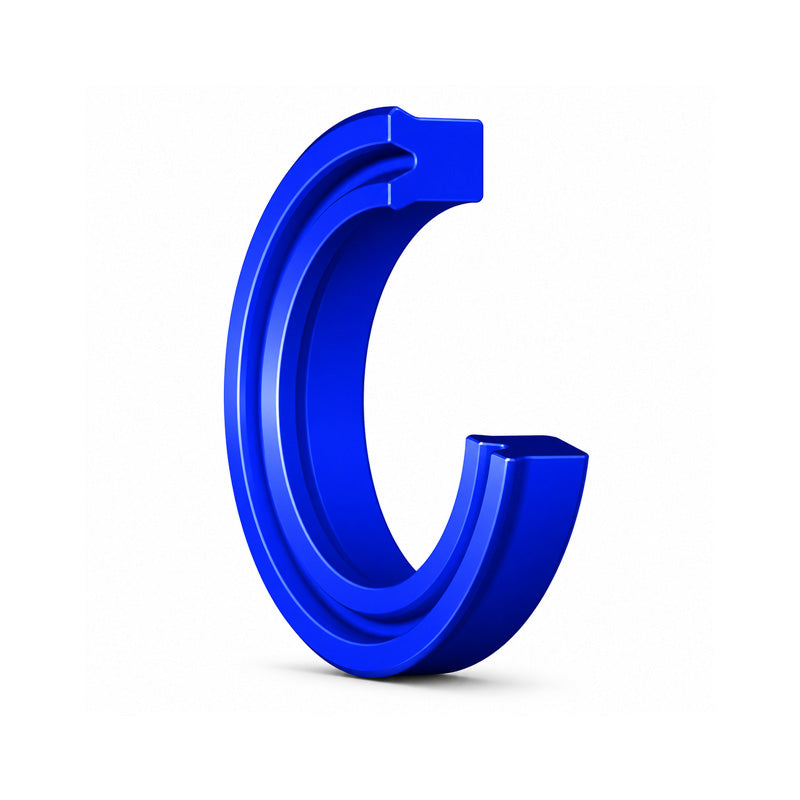

NAK 16x24x5.7mm UNP Polyurethane Symmetrical Seal - Allow 7-10 Days
NAK 16x24x5.7mm UNP Polyurethane Symmetrical Seal - Allow 7-10 Days
Regular price
$6.08
ex VAT
Regular price
Sale price
$6.08
ex VAT
In stock
Price Break
10+
$2.88
19+
$2.72
29+
$2.69
39+
$2.66
49+
$2.62
74+
$2.59
99+
$2.43
199+
$2.40
249+
$2.37
499+
$2.33
999+
$2.27
Quantity
Couldn't load pickup availability
Description
Description
NAK UNP Symmetrical Seals: UNP symmetrical seals are versatile, single-acting hydraulic seals featuring a symmetrical lip profile, designed for use in both piston and rod configurations. Their balanced geometry allows for flexible installation in either position, making them ideal for simplifying assembly in hydraulic systems.
Benefits: Reliable sealing, simplified installation, universal fit for both piston and rod applications
- Brand / Quality:
- NAK - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 24mm
- Length:
- 5.7mm
- Material:
- Polyurethane
- Style:
- UNP
- Colour:
- Blue

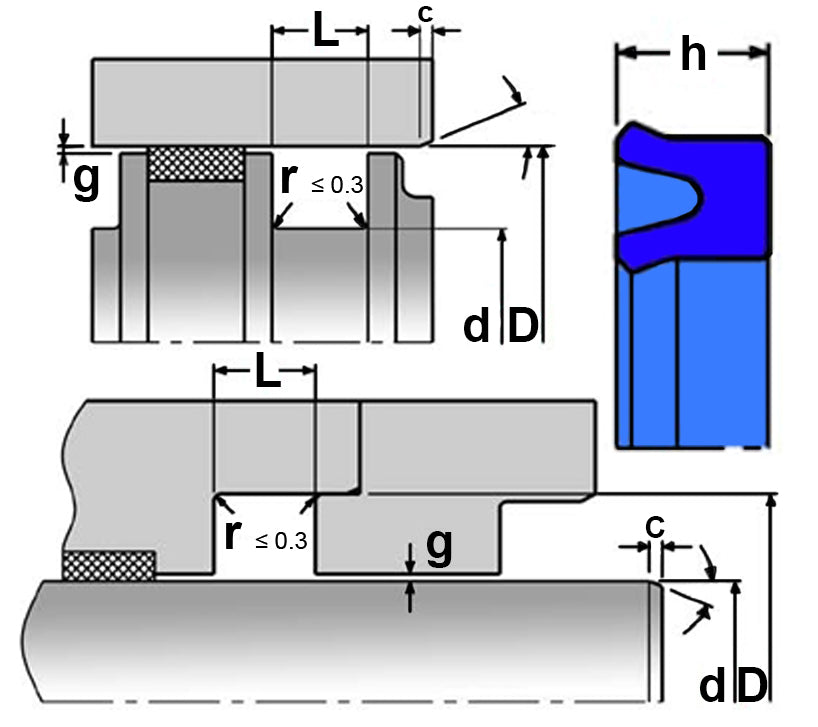

Technical
Technical
| d | 16mm |
|---|---|
| D | 24mm |
| L | 6.4mm |
| h | 5.7mm |
| C | 4mm |
| Inside Diameter Tolerance | h10 |
| Outside Diameter Tolerance | H9 |
| Length Tolerance | 0.2mm |
| Pressure (max) | 30 Mpa |
| Sliding Speed (max) | 0.5 m/s |
| Temperature | -40 Deg C to +100 Deg C |
| Colour | Blue |
