SKU: 16B-3-SD-NO11-RENOLD
Renold SD 16B-3-NO11 BS Triplex Chain Cottered Connecting Link 1 inch Pitch
- Regular price
- $25.11 ex VAT
- Sale price
- $25.11
- Regular price
-
Not in stock
Quantity Price Breaks
2
$22.35
5
$21.09
10
$20.84
29
$20.59
49
$20.34
75
$20.09
100
$18.83
200
$18.58
250
$18.33
500
$18.08
1000
$17.58
SKU:
16B-3-SD-NO11-RENOLD
Renold SD 16B-3-NO11 BS Triplex Chain Cottered Connecting Link 1 inch Pitch
- Regular price
- $25.11 ex VAT
- Sale price
- $25.11
- Regular price
-
Description

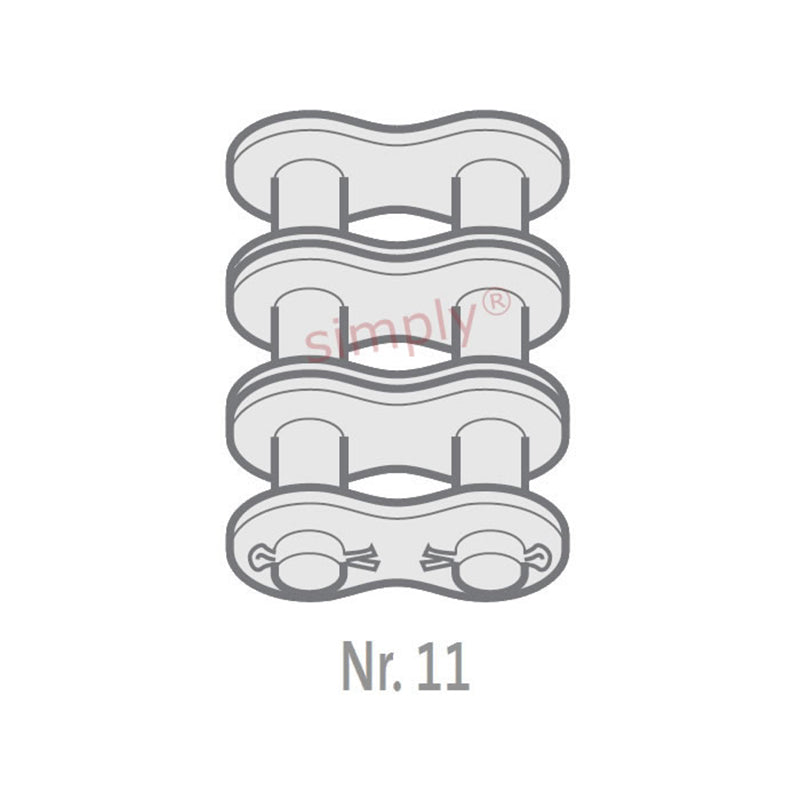

| Renold No. 11 European (BS) Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 17.02mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 21.05mm |
| Plate Width Inner max (E) | = | 4mm |
| Plate Width Outer max (F) | = | 3.2mm |
| Pin Diameter max (G) | = | 8.28mm |
| Pin Length max (H1) | = | 103.2mm |
| Connecting Link Extension max (J) | = | 3.60000000000001mm |
| ISO606 Tensile Strength min | = | 173000 N |
| Weight | = | 0.106kg/m |
