SKU: 16B-1-SYN-NO26-RENOLD
Renold Synergy 16B-1-NO26 BS Simplex Chain Connecting Link With Spring Clip 1 inch Pitch
- Regular price
- $50.49 ex VAT
- Sale price
- $50.49
- Regular price
-
Not in stock
Quantity Price Breaks
2
$44.94
5
$42.41
10
$41.91
29
$41.40
49
$40.90
75
$40.39
100
$37.87
200
$37.36
250
$36.86
500
$36.35
1000
$35.34
SKU:
16B-1-SYN-NO26-RENOLD
Renold Synergy 16B-1-NO26 BS Simplex Chain Connecting Link With Spring Clip 1 inch Pitch
- Regular price
- $50.49 ex VAT
- Sale price
- $50.49
- Regular price
-
Description

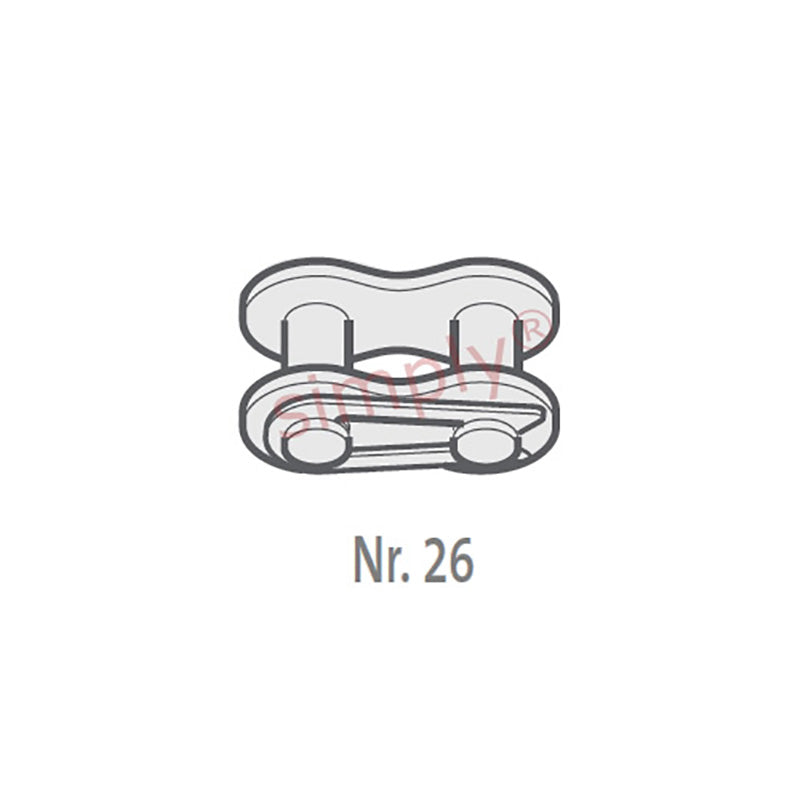

| Renold No. 26 European (BS) Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
Technical
| Pitch (A) | = | 1 inch |
| Pitch (A) | = | 25.4mm |
| Inside Width min (B) | = | 17.02mm |
| Roller Diameter max (C) | = | 15.88mm |
| Plate Height max (D) | = | 21.08mm |
| Plate Width Inner max (E) | = | 4.12mm |
| Plate Width Outer max (F) | = | 3.1mm |
| Pin Diameter max (G) | = | 8.28mm |
| Pin Length max (H1) | = | 34.9mm |
| Connecting Link Extension max (J) | = | 2.2mm |
| ISO606 Tensile Strength min | = | 60000 N |
| Weight | = | 0.067kg/m |
