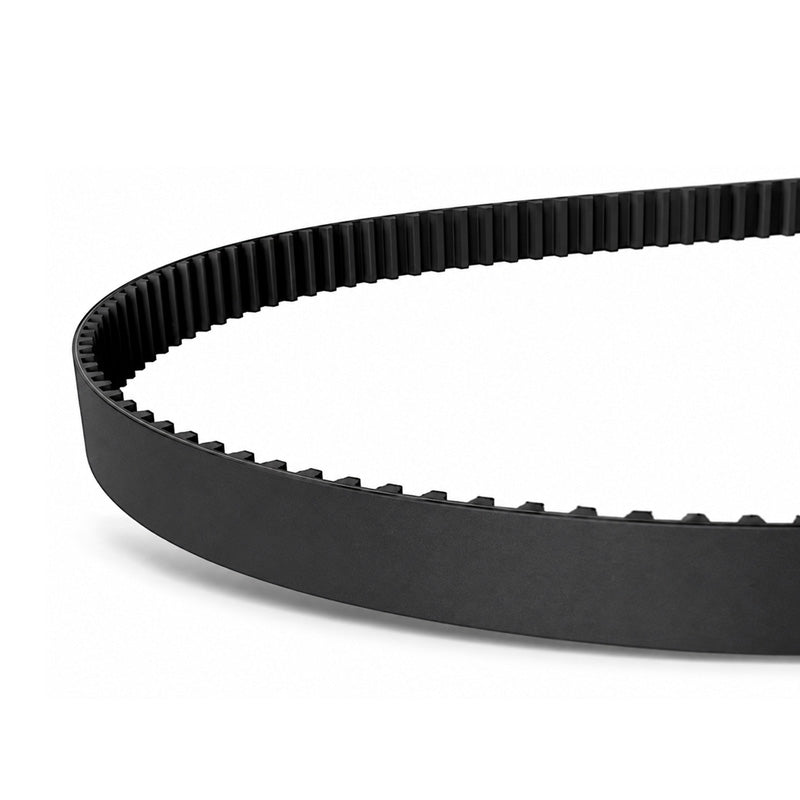

168XL025 Transflex Synchronous Toothed Belt 0.25 inch Wide 16.8 inch Length 84 Teeth
168XL025 Transflex Synchronous Toothed Belt 0.25 inch Wide 16.8 inch Length 84 Teeth
Regular price
$5.82
ex VAT
Regular price
Sale price
$5.82
ex VAT
In stock
Price Break
3+
$2.17
5+
$1.86
10+
$1.71
15+
$1.55
20+
$1.24
30+
$1.09
40+
$0.93
50+
$0.00
60+
$0.00
75+
$0.00
100+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous
transmission throughout the entire field of drive technology. They enable
purpose-made solutions to be realized effectively and economically. Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers. Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance. |
- Brand / Quality:
- Transflex - High Quality
- Belt Width Approx:
- 6.35mm = 1/4 inch
- Belt Depth Approx:
- 2.3mm
- Belt Length Approx:
- 426.72mm = 16.8 inch
- Number of Teeth:
- 84
Technical
Technical
| Belt width | 0.25 inch = 6.35mm |
|---|---|
| Pitch length | 16.8 inch = 426.72mm |
| Number of teeth | 84 |
| Tooth pitch t | 0.2 inch |
| Flank angle f | 50 degrees |
| Tooth height h<sub>t</sub> | 0.05 inch |
| Pitch zone u | 0.01 inch |
