SKU: 16101-2Z/C3-SKF

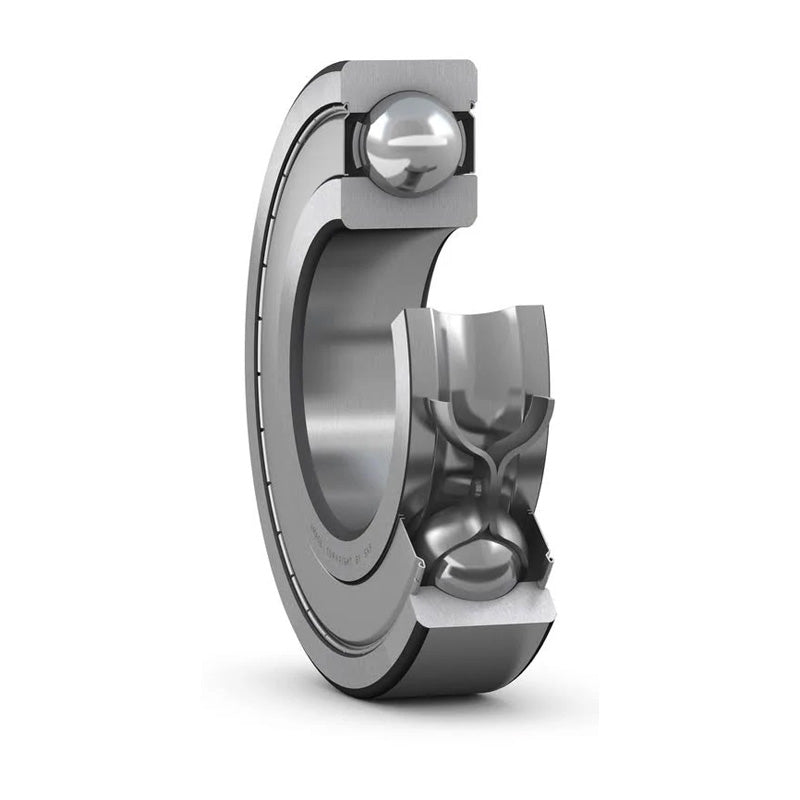

SKF 161012ZC3 Metal Shielded Deep Groove Ball Bearing 12x30x8mm
SKF 161012ZC3 Metal Shielded Deep Groove Ball Bearing 12x30x8mm
Equivalent to: 16101ZZEC3 16101ZZC3 16101.2ZC3 16101KDDC3 16101DDC3 161012ZRC3 16101FFC3
Out of stock
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 30mm
- Width:
- 8mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| d | 12mm |
|---|---|
| D | 30mm |
| B | 8mm |
| Dynamic load C | 5.07 kN |
| Static load Co | 2.36 kN |
| Fatigue load limit Pu | 0.1 kN |
| Reference speed | 56000 rpm |
| Limiting speed | 28000 rpm |
| Weight | 0.023 kg |
| d1 | 16.7mm |
| d2 | 0mm |
| D2 | 24.8mm |
| r1r2 min | 0.3mm |
| da min | 14.4mm |
| da max | 0mm |
| Da max | 27.6mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 13 |
