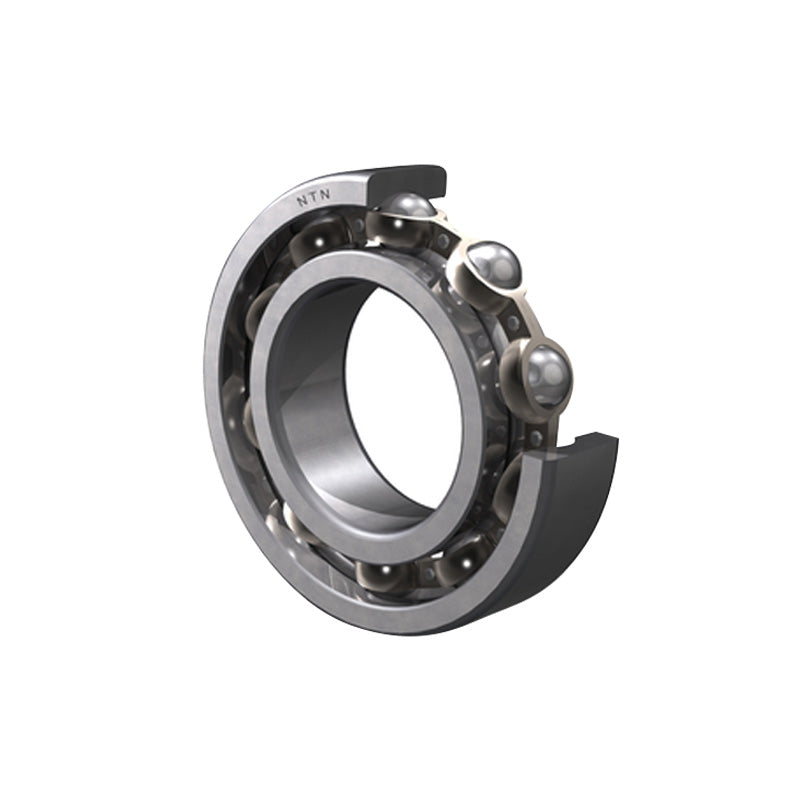

NTN 16013C3 Open Type Deep Groove Ball Bearing 65x100x11mm
NTN 16013C3 Open Type Deep Groove Ball Bearing 65x100x11mm
Regular price
$61.90
ex VAT
Regular price
Sale price
$61.90
ex VAT
Equivalent to: ELN60C3 ELLN60C3
In stock
Price Break
3+
$29.35
5+
$27.70
10+
$27.37
25+
$27.04
49+
$26.71
74+
$26.38
99+
$24.74
199+
$24.41
249+
$24.08
499+
$23.75
999+
$23.09
Quantity
Couldn't load pickup availability
Description
Description
Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available.
Benefits: Used widely in transmissions etc, can be used in oil or greased, cost-effective solution.
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 100mm
- Width:
- 11mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 65mm |
| D | 100mm |
| B | 11mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 22.7 kN |
| C<sub>or</sub> | 18.7 kN |
| C<sub>u</sub> | 1.26 kN |
| f<sub>0</sub> | 16.5 kN |
| Grease | 6500 rpm |
| Oil | 7700 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 69mm |
| D<sub>a</sub> Max. | 96mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight | 0.307 kg |
