SKU: 16004-2Z-NKE

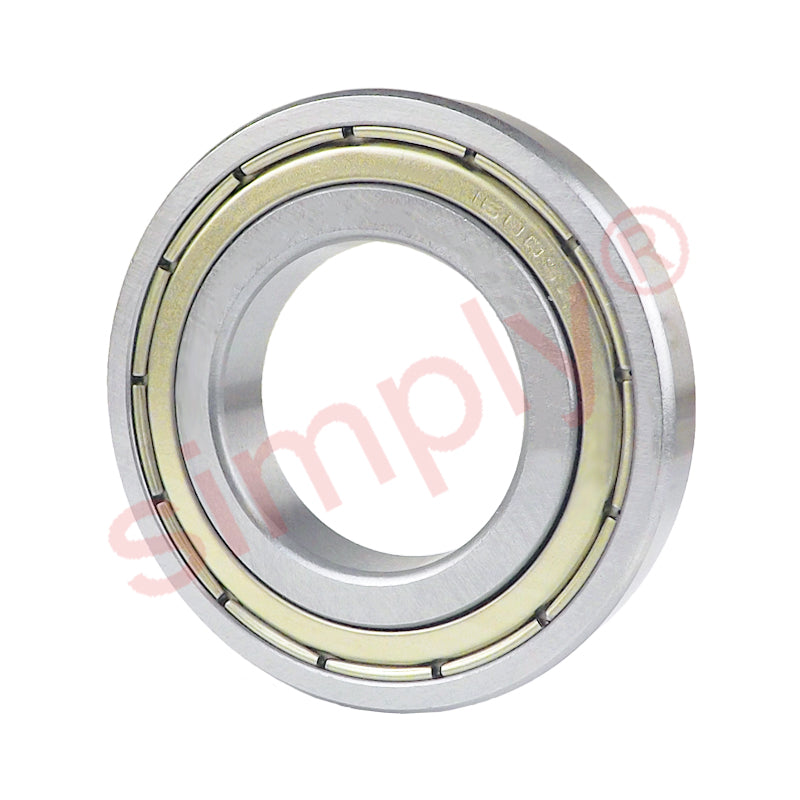

NKE 160042Z Metal Shielded Deep Groove Ball Bearing 20x42x8mm
Equivalent to: 160042Z 16004.2Z 16004.2Z 16004ZZ 160042ZR 16004ZZE 16004ZZ 16004.2Z 16004KDD 16004DD 160042ZR 16004FF
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- NKE - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 42mm
- Width:
- 8mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 20mm |
|---|---|
| D | 42mm |
| B | 8mm |
| Dynamic load C | 7.28 kN |
| Static load Co | 4.05 kN |
| Fatigue load limit Pu | 0.173 kN |
| Reference speed | 38000 rpm |
| Limiting speed | 24000 rpm |
| Weight | 0.05 kg |
| d1 | 27.3mm |
| d2 | 34.6mm |
| r1r2 min | 0.3mm |
| da min | 22mm |
| Da max | 40mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.02 |
| Calculation factor f0 | 15 |
