SKU: 16001-2Z-NKE

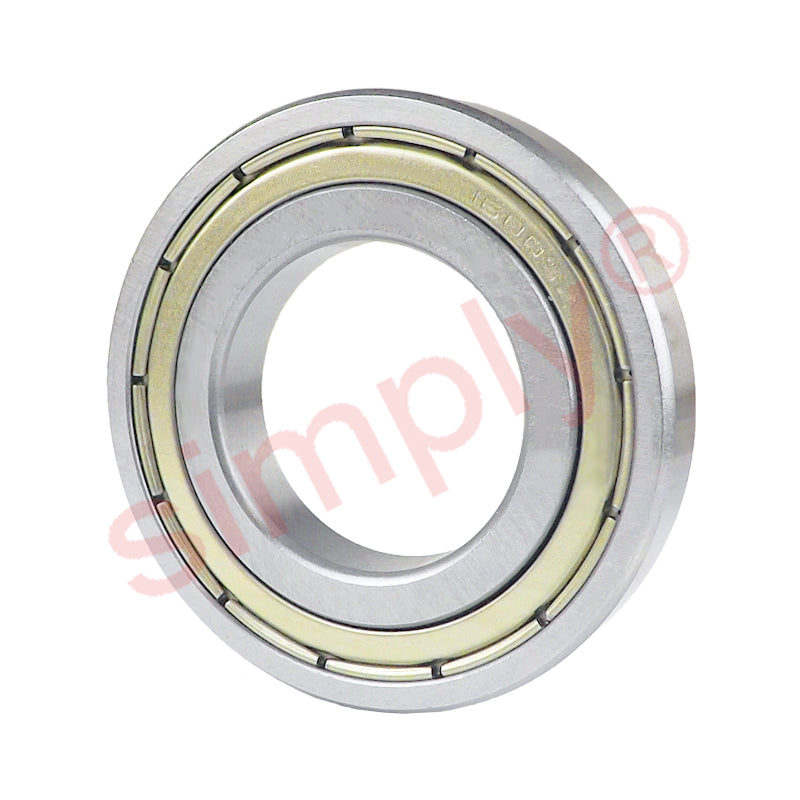

NKE 160012Z Metal Shielded Deep Groove Ball Bearing 12x28x7mm
Equivalent to: 160012Z 16001.2Z 16001.2Z 16001ZZ 160012ZR 16001ZZE 16001ZZ 16001.2Z 16001KDD 16001DD 160012ZR 16001FF
In stock
Price Break
Couldn't load pickup availability
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
- Brand / Quality:
- NKE - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 28mm
- Width:
- 7mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 12mm |
|---|---|
| D | 28mm |
| B | 7mm |
| Dynamic load C | 5.4 kN |
| Static load Co | 2.36 kN |
| Fatigue load limit Pu | 0.1 kN |
| Reference speed | 60000 rpm |
| Limiting speed | 30000 rpm |
| Weight | 0.022 kg |
| d2 | 15.2mm |
| D2 | 24.8mm |
| r1r2 min | 0.3mm |
| da min | 14mm |
| da max | 15mm |
| Da max | 26mm |
| ra max | 0.3mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 13 |
