SKU: 160-1-BB-NO12-RENOLD
Renold Blue Box 160-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 2 inch Pitch
- Regular price
- $293.28 ex VAT
- Sale price
- $293.28
- Regular price
-
Not in stock
Quantity Price Breaks
2
$261.02
5
$246.36
10
$243.42
29
$240.49
49
$237.56
75
$234.62
100
$219.96
200
$217.03
250
$214.09
500
$211.16
1000
$205.30
SKU:
160-1-BB-NO12-RENOLD
Renold Blue Box 160-1-NO12 ANSI / AS Simplex Chain Single Cranked Cottered Link 2 inch Pitch
- Regular price
- $293.28 ex VAT
- Sale price
- $293.28
- Regular price
-
Description

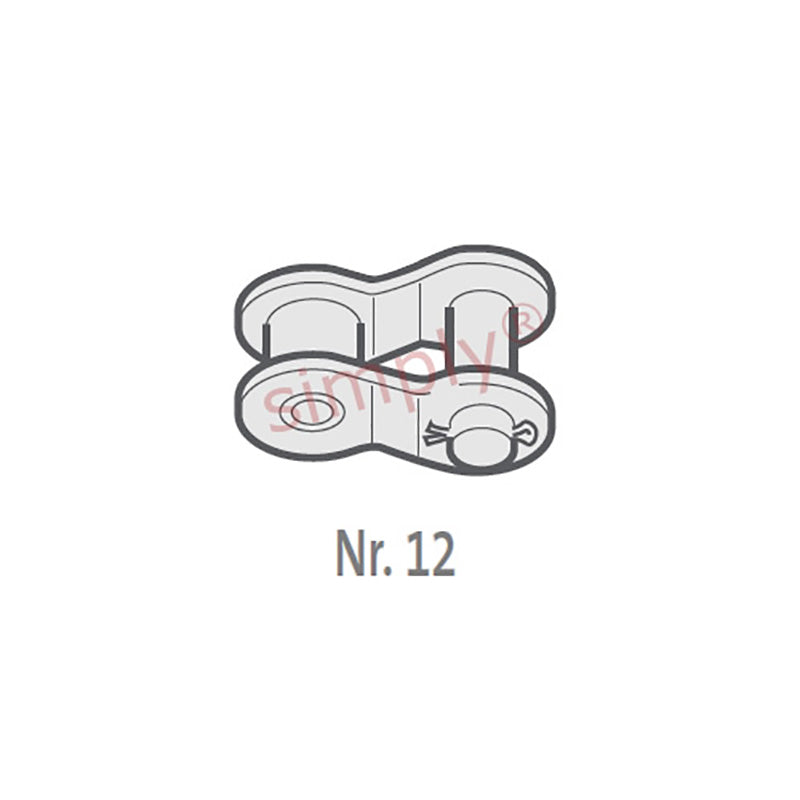

| Renold No. 12 ANSI Simplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 2 inch |
| Pitch (A) | = | 50.8mm |
| Inside Width min (B) | = | 31.55mm |
| Roller Diameter max (C) | = | 28.58mm |
| Plate Height max (D) | = | 48.26mm |
| Plate Width Inner max (E) | = | 6.35mm |
| Plate Width Outer max (F) | = | 6.35mm |
| Pin Diameter max (G) | = | 14.29mm |
| Pin Length max (H2) | = | 63.1mm |
| Connecting Link Extension max (J) | = | 6.5mm |
| ISO606 Tensile Strength min | = | 223000 N |
| Weight | = | 0.45kg/m |
