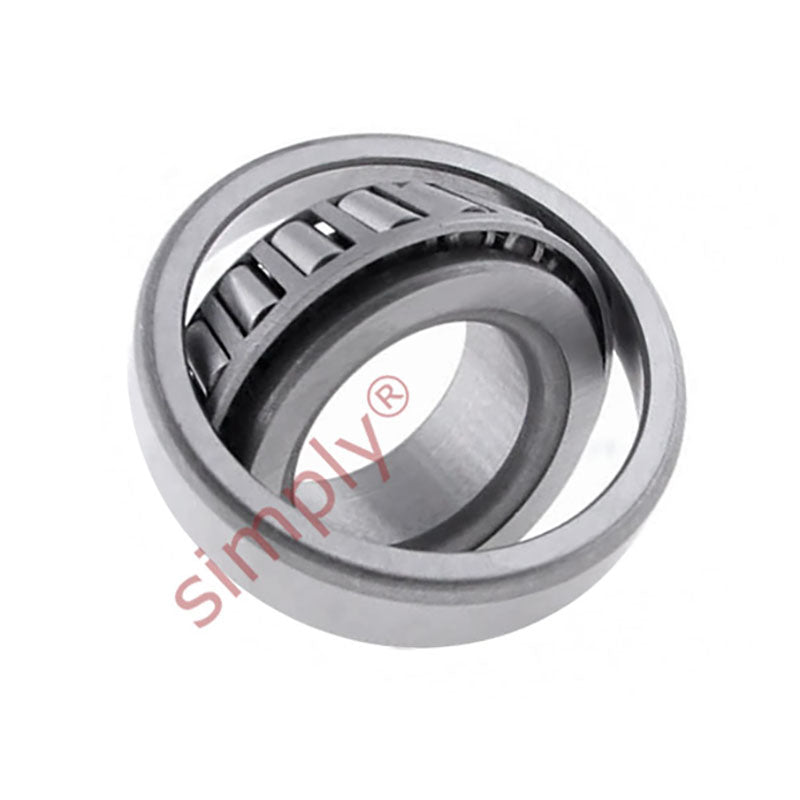

SKF 14137A/14276/Q Imperial Taper Roller Bearing 1.375x2.717x0.7813 inches

Name: SKF 14137A/14276/Q Imperial Taper Roller Bearing 1.375x2.717x0.7813 inches
Brand: SKF
SKU: 14137A/14276/Q-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load

Brand / Quality:: SKF - High Quality
Inside Diameter:: 34.93mm = 1.375 (1-3/8) inch
Outside Diameter:: 69.01mm = 2.717 inch
Width:: 19.84mm = 0.781 (25/32) inch
Seals / Shields:: None

Technical

d	34.925mm
D	69.012mm
T	19.845mm
Dynamic load	53.9 kN
Static load	67 kN
Fatigue load limit Pu	7.35 kN
Reference speed	7500 rpm
Limiting speed	11000 rpm
Weight	0.34 kg
d1	50.7mm
B	19.583mm
C	15.875mm
r1r2 min	1.5mm
r3r4 min	1.3mm
a	15mm
da max	43mm
db min	42mm
Da min	47mm
Da max	61.5mm
Db min	63mm
Ca min	3mm
Cb min	3.5mm
ra max	1.5mm
rb max	1.3mm
Calculation factor e	0.37
Calculation factor Y	1.6
Calculation factor Y0	0.9
