SKU: 140-2-BB-NO12-RENOLD
Renold Blue Box 140-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 1-3/4 inch Pitch
- Regular price
- $483.81 ex VAT
- Sale price
- $483.81
- Regular price
-
Not in stock
Quantity Price Breaks
2
$430.59
5
$406.40
10
$401.56
29
$396.72
49
$391.89
75
$387.05
100
$362.86
200
$358.02
250
$353.18
500
$348.34
1000
$338.67
SKU:
140-2-BB-NO12-RENOLD
Renold Blue Box 140-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 1-3/4 inch Pitch
- Regular price
- $483.81 ex VAT
- Sale price
- $483.81
- Regular price
-
Description

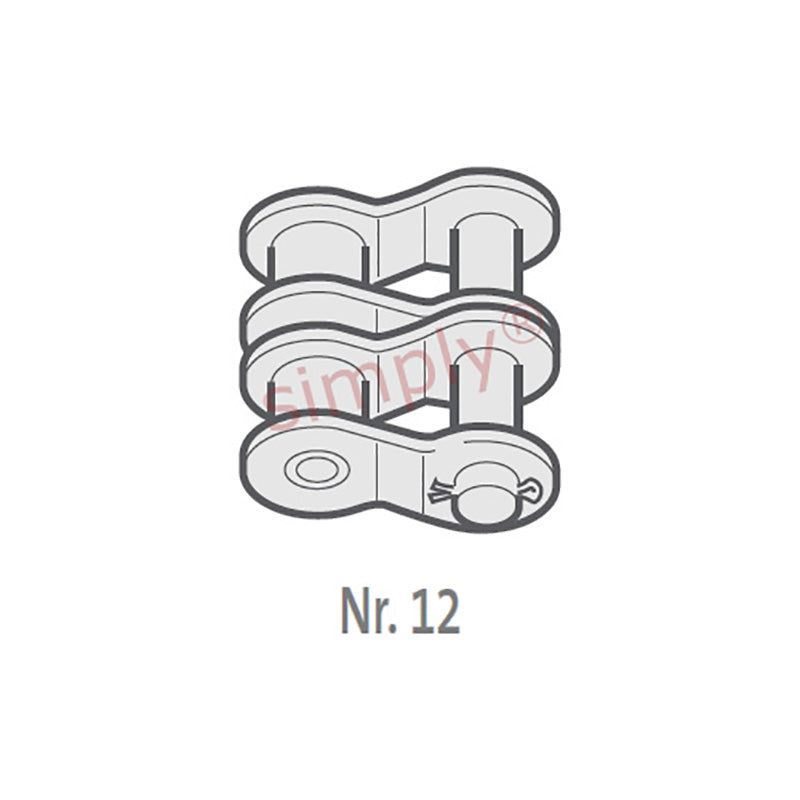

| Renold No. 12 ANSI Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
Technical
| Pitch (A) | = | 1.75 inch |
| Pitch (A) | = | 44.45mm |
| Inside Width min (B) | = | 25.23mm |
| Roller Diameter max (C) | = | 25.4mm |
| Plate Height max (D) | = | 42.23mm |
| Plate Width Inner max (E) | = | 5.61mm |
| Plate Width Outer max (F) | = | 5.61mm |
| Pin Diameter max (G) | = | 12.71mm |
| Pin Length max (H2) | = | 101.8mm |
| Connecting Link Extension max (J) | = | 5.2mm |
| Transverse Pitch nom (K) | = | 48.87mm |
| ISO606 Tensile Strength min | = | 340000 N |
| Weight | = | 0.77kg/m |
