• Renold Blue Box 140-1-NO11 ANSI / AS Simplex Chain Cottered Connecting Link 1-3/4 inch Pitch
1 1

SKU: 140-1-BB-NO11-RENOLD

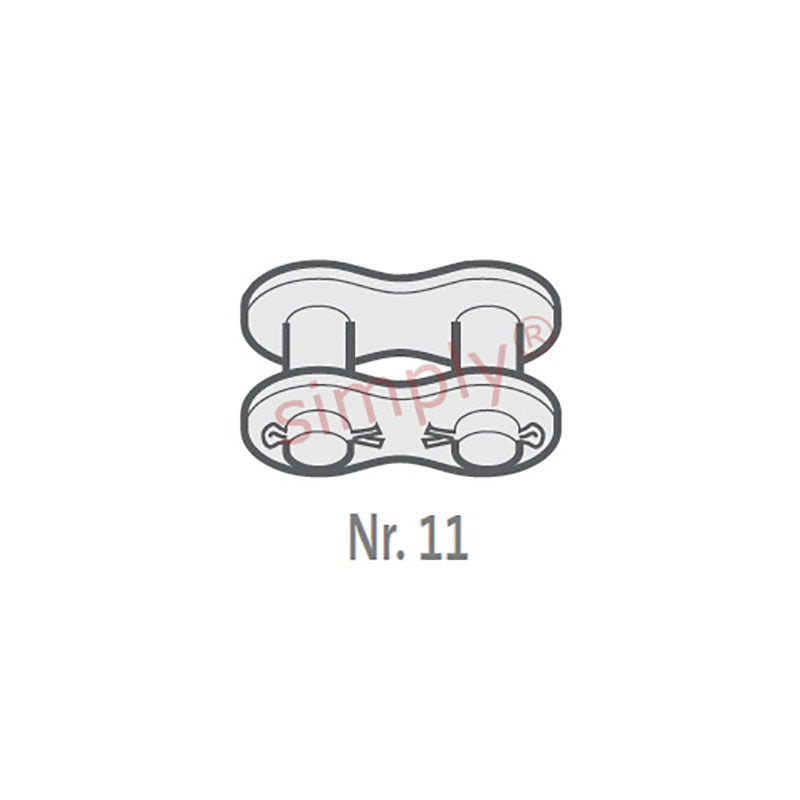

Renold Blue Box 140-1-NO11 ANSI / AS Simplex Chain Cottered Connecting Link 1-3/4 inch Pitch

Renold Blue Box 140-1-NO11 ANSI / AS Simplex Chain Cottered Connecting Link 1-3/4 inch Pitch
$126.56 ex VAT
$126.56 ex VAT
Sale Sold out

In stock

Price Break
2+ $60.02
5+ $56.64
10+ $55.97
29+ $55.30
49+ $54.62
75+ $53.95
100+ $50.58
200+ $49.90
250+ $49.23
500+ $48.55
1000+ $47.20

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
ANSI_NO11S_DESC
Brand / Quality:
Renold - High Quality
Pitch:
44.45mm = 1.75 (1-3/4) inch
Technical
Pitch (A) 1.75 inch
Pitch (A) 44.45mm
Inside Width min (B) 25.23mm
Roller Diameter max (C) 25.4mm
Plate Height max (D) 42.23mm
Plate Width Inner max (E) 5.61mm
Plate Width Outer max (F) 5.61mm
Pin Diameter max (G) 12.71mm
Pin Length max (H2) 52.9mm
Connecting Link Extension max (J) 5.2mm
ISO606 Tensile Strength min 170000 N
Weight 0.397kg/m
