• 1307K Budget Open Self Aligning Ball Bearing with Taper Bore 35x80x21mm
1 1

SKU: 1307K-EU

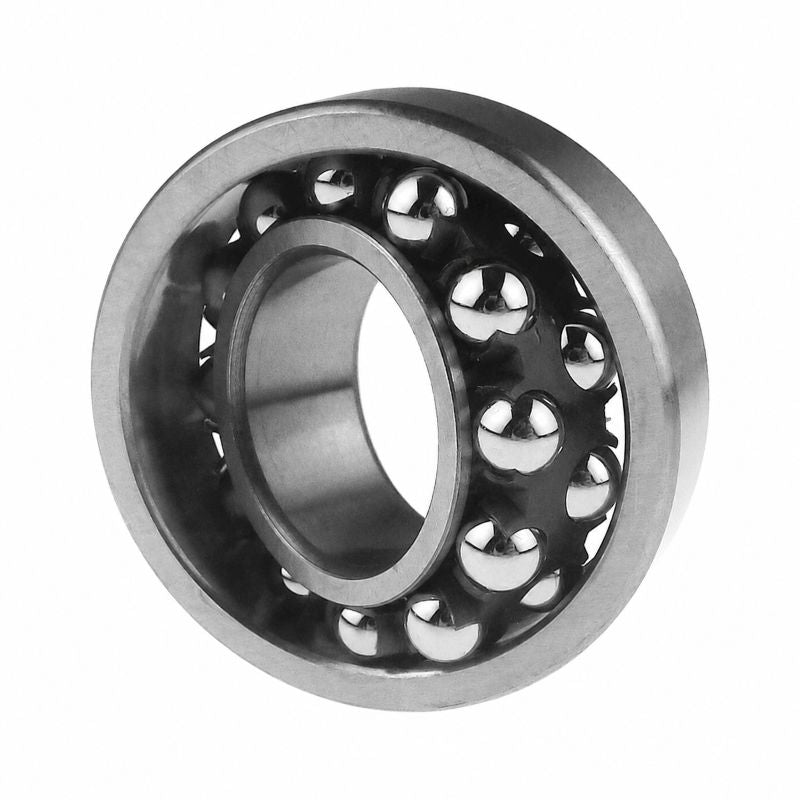

1307K Budget Open Self Aligning Ball Bearing with Taper Bore 35x80x21mm

1307K Budget Open Self Aligning Ball Bearing with Taper Bore 35x80x21mm
$41.10 ex VAT
$41.10 ex VAT
Sale Sold out

Equivalent to: 1307EK

In stock

Price Break
10+ $19.49
19+ $18.40
29+ $18.18
39+ $17.96
49+ $17.74
74+ $17.52
99+ $16.43
199+ $16.21
249+ $15.99
499+ $15.77
999+ $15.33

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SAB1_DESC
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
35mm
Outside Diameter:
80mm
Width:
21mm
Seals / Shields:
None
Clearance:
* Standard
Technical
--- Dimensions
d 35mm
D 80mm
B 21mm
D1 69.5mm
d1d2 51.5mm
r1r2 1.5mm
da min 44mm
Da max 71mm
ra max 1.5mm
--- Calculation Data
C 26.5kN
Co 8.58.8
Pu 0.43kN
ref 16000rpm
limit 11000rpm
e 0.25
Y1 2.5
Y2 3.9
Y0 2.5
--- Weights
kg 0.51
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H307+sleeve>H307</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HS307+sleeve>HS307</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HA307+sleeve>HA307</a>
