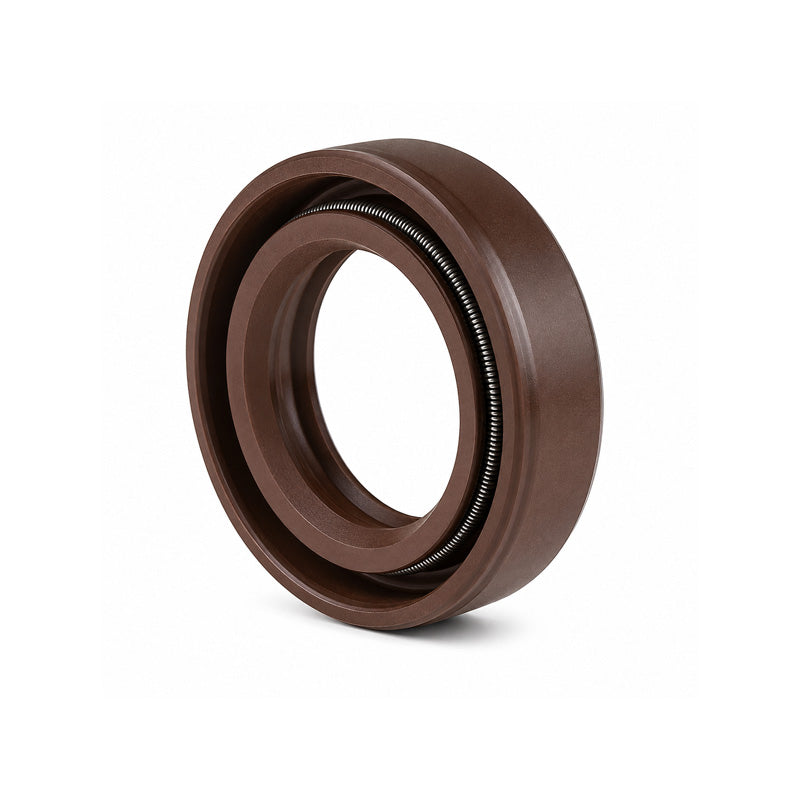

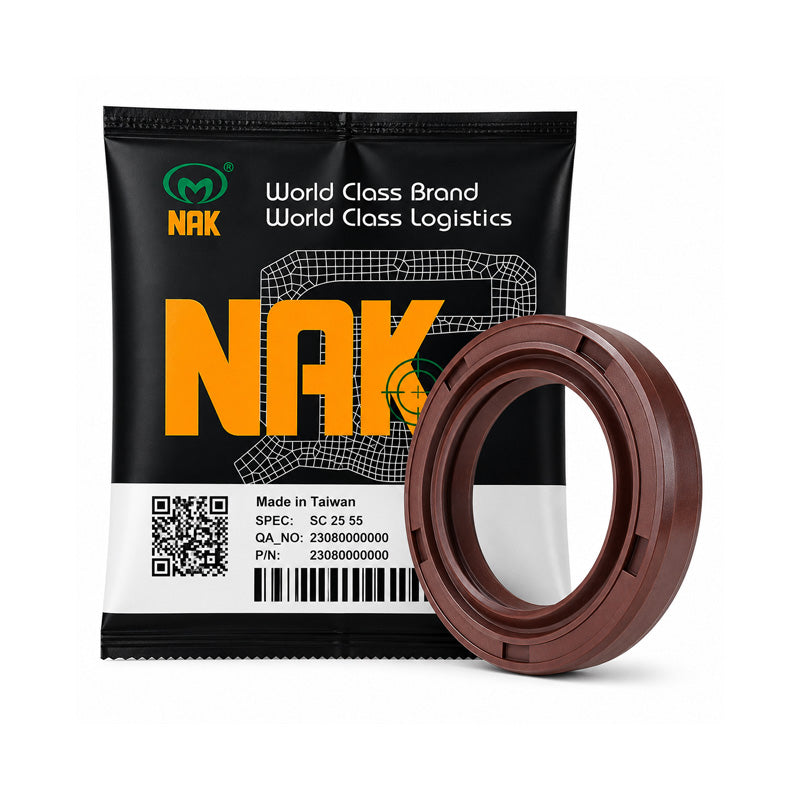

• NAK 12x24x6/6.5mm HIGH PRESSURE FKM Rubber Double Lip Rotary Shaft Oil Seal with Extra Internal Sealing Profile with Garter Spring TCN11
  • NAK 12x24x6/6.5mm HIGH PRESSURE FKM Rubber Double Lip Rotary Shaft Oil Seal with Extra Internal Sealing Profile with Garter Spring TCN11
1 2

SKU: 12x24x6/6.5_TCN11_VI_NAK

NAK 12x24x6/6.5mm HIGH PRESSURE FKM Rubber Double Lip Rotary Shaft Oil Seal with Extra Internal Sealing Profile with Garter Spring TCN11

NAK 12x24x6/6.5mm HIGH PRESSURE FKM Rubber Double Lip Rotary Shaft Oil Seal with Extra Internal Sealing Profile with Garter Spring TCN11
$48.59 ex VAT
$48.59 ex VAT
Sale Sold out

In stock

Price Break
10+ $23.04
19+ $21.75
29+ $21.49
39+ $21.23
49+ $20.97
74+ $20.71
99+ $19.42
199+ $19.16
249+ $18.90
499+ $18.64
999+ $18.12

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
JU440FUOQI
Brand / Quality:
NAK - High Quality
Inside Diameter:
12mm
Outside Diameter:
24mm
Width:
6mm
Seals / Shields:
FKM
Style:
TCN11
Colour:
Brown
Technical
--- Dimensions
Shaft Size (not inside diameter) d 12mm
Outside Diameter (D) 24mm
Width (b) 6mm
Width 2 (b1) 6.5mm
--- Specifications
Avg. Pressure 3.5 bar
Max. Pressure 7 bar
Max. Velocity 9 m/s
Max PV 10 bar*m/s
--- Material
Material FKM Rubber
Spring Material Carbon Steel
Colour Brown
--- Weights
Weight 0.01 kg
