SKU: 12B-3-SNX-XXX-RENOLD

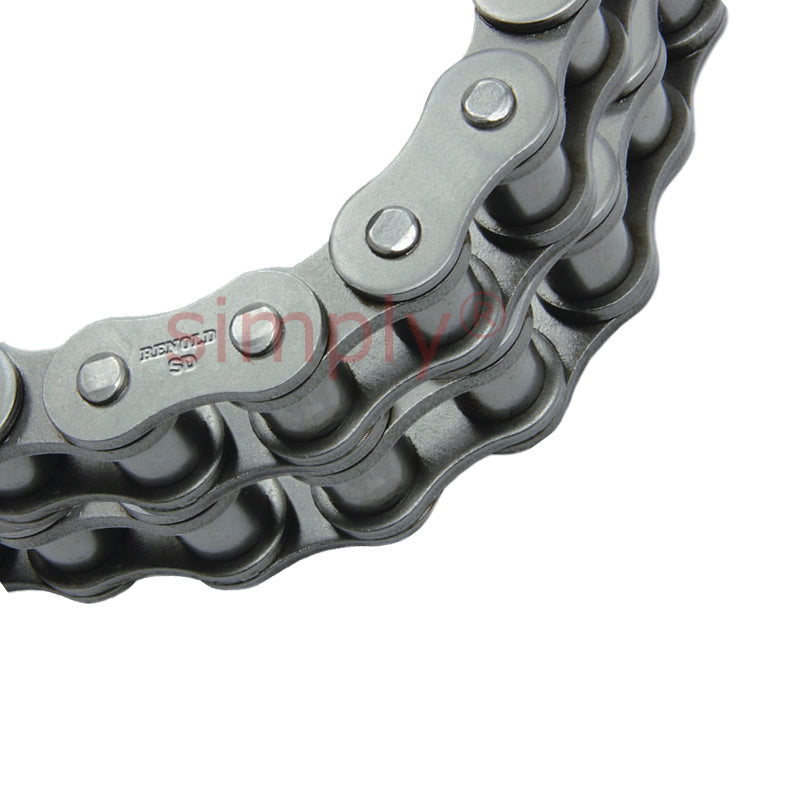

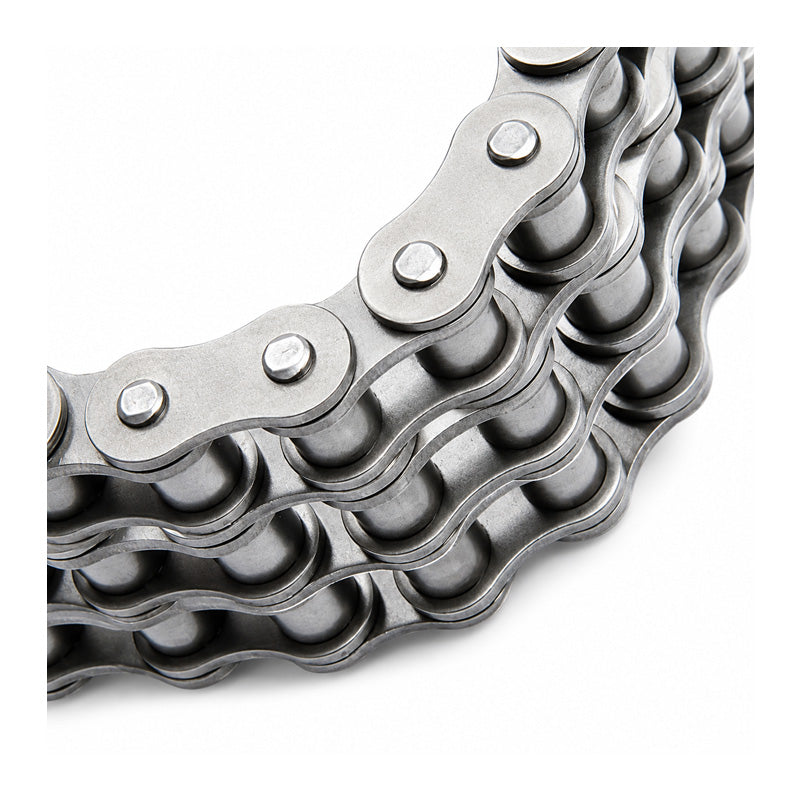

Renold SYNO 12B-3 BS Triplex Roller Chain 3/4 inch Pitch
Renold SYNO 12B-3 BS Triplex Roller Chain 3/4 inch Pitch
Equivalent to: SNX12B-3
Out of stock
Description
Description
Renold SYNO Maintenace-free Corrosion-resistant Triplex Chain: Renold Syno Nickel Plated chain is ideal for situations where lubricant is to be avoided. Particularly in hygiene-sensitive applications. With a food industry-approved lubricant contained within its sintered bush, this chain needs no relubricating in practically every environment. The roller coating, unique to Renold, is especially suited to the food industry.
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 11.68mm |
| Roller Diameter max (C) | 12.07mm |
| Plate Height max (D) | 16.1mm |
| Plate Width Inner max (E) | 1.8mm |
| Plate Width Outer max (F) | 1.8mm |
| Pin Diameter max (G) | 5.72mm |
| Pin Length max (H2) | 60.9mm |
| Connecting link extension max (J) | 2.6mm |
| Transverse Pitch nom (K) | 19.46mm |
| ISO606 Tensile strength min | 86700 N |
| Weight | 3.53 kg/m |
