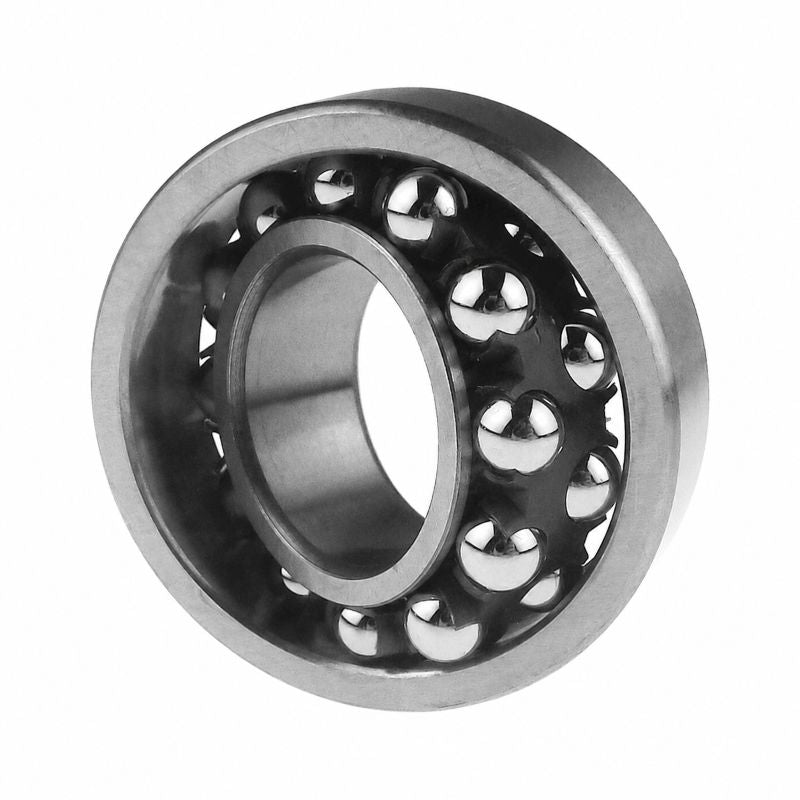

• 1215KC3 Open Self Aligning Ball Bearing with Taper Bore 75x130x25mm
1 1

SKU: 1215.K.C3.MB

1215KC3 Open Self Aligning Ball Bearing with Taper Bore 75x130x25mm

1215KC3 Open Self Aligning Ball Bearing with Taper Bore 75x130x25mm
$136.91 ex VAT
$136.91 ex VAT
Sale Sold out

Equivalent to: 1215EKC3 1215KC3

In stock

Price Break
10+ $65.00
19+ $61.35
29+ $60.62
39+ $59.89
49+ $59.16
74+ $58.43
99+ $54.78
199+ $54.05
249+ $53.32
499+ $52.59
999+ $51.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
75mm
Outside Diameter:
130mm
Width:
25mm
Seals / Shields:
None
Clearance:
C3
Technical
--- Dimensions
d 75mm
D 130mm
B 25mm
r1r2 min 1.5mm
--- Speeds, Loads and Weights
Dynamic Load 38.9kN
Static Load 15.5kN
Pu 0.7Kn
Reference Speed 5500rpm
Limiting Speed 6700rpm
Weight 1.34kg
--- Factors
e 0.19
Fa/Fr = e 3.32
Fa/Fr > e 5.15
Y0 3.48
--- Matching Adaptor Sleeves
Adaptor Sleeve <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H215+sleeve>H215</a>
Adaptor Sleeve <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HA215+sleeve>HA215</a>
Adaptor Sleeve <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE215+sleeve>HE215</a>
Adaptor Sleeve <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HS215+sleeve>HS215</a>
