• RHP 1120-3/4CG Full Width Snap Ring Grub Screw Bearing Insert 3/4 inch Bore 47mm Outside Diameter
1 1

SKU: 1120-3/4CG-RHP

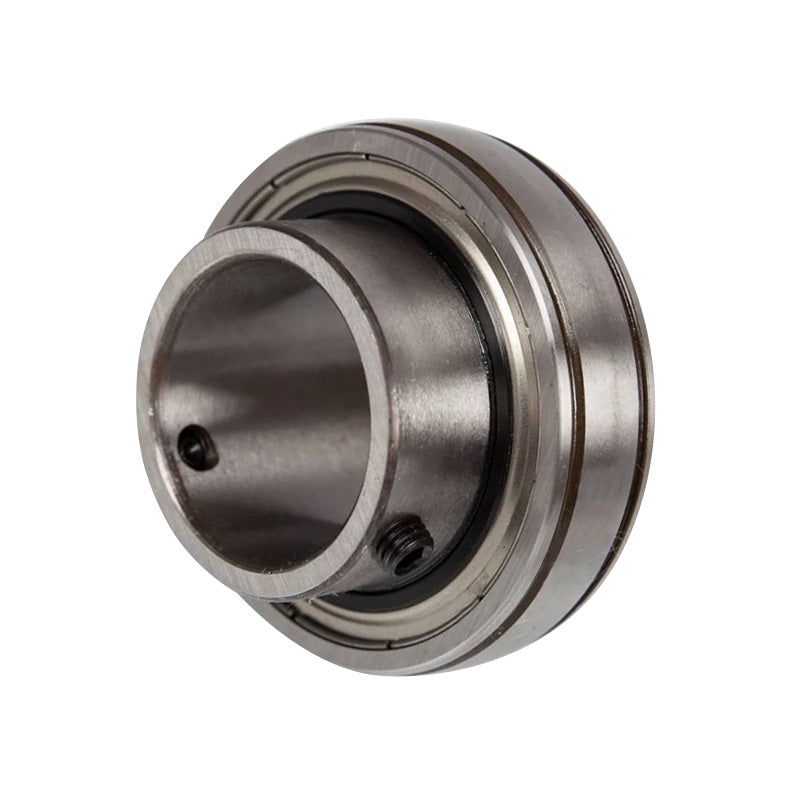

RHP 1120-3/4CG Full Width Snap Ring Grub Screw Bearing Insert 3/4 inch Bore 47mm Outside Diameter

RHP 1120-3/4CG Full Width Snap Ring Grub Screw Bearing Insert 3/4 inch Bore 47mm Outside Diameter
$43.99 ex VAT
$43.99 ex VAT
Sale Sold out

In stock

Price Break
10+ $20.86
20+ $19.69
30+ $19.45
40+ $19.22
50+ $18.98
75+ $18.75
100+ $17.58
200+ $17.34
250+ $17.11
500+ $16.87
1000+ $16.41

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RHP 1100 - CG Series Bearing Insert: This insert type is a full width sealed bearing with a parallel outer diameter and comes fitted with one snap ring (there are 2 grooves allowing its position to be moved to suit), they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft after installation.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Brand / Quality:
RHP - High Quality
Inside Diameter:
19.05mm = 0.75 (3/4) inch
Outside Diameter:
47mm
Style:
1120
Technical
Bore 3/4 inch
D 1.8504mm
D1 2.074mm
C 0.625mm
C1 0.94mm
C2 0.164mm
B 1.219mm
s 0.502mm
d1 1.122mm
f 0.44mm
M 0.211mm
r 0.039mm
r1 0.02mm
Dynamic load Cr 12800 N
Static load Cor 6650 N
Rec max speed 6700 rpm
Weight 0.23 kg
