SKU: 10B-1-SD-NO26-RENOLD
Renold SD 10B-1-NO26 BS Simplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
Renold SD 10B-1-NO26 BS Simplex Chain Connecting Link With Spring Clip 5/8 inch Pitch
Regular price
$7.53
ex VAT
Regular price
Sale price
$7.53
ex VAT
In stock
Price Break
2+
$3.56
5+
$3.36
10+
$3.32
29+
$3.28
49+
$3.24
75+
$3.20
100+
$3.00
200+
$2.96
250+
$2.92
500+
$2.88
1000+
$2.80
Quantity
Couldn't load pickup availability
Description
Description

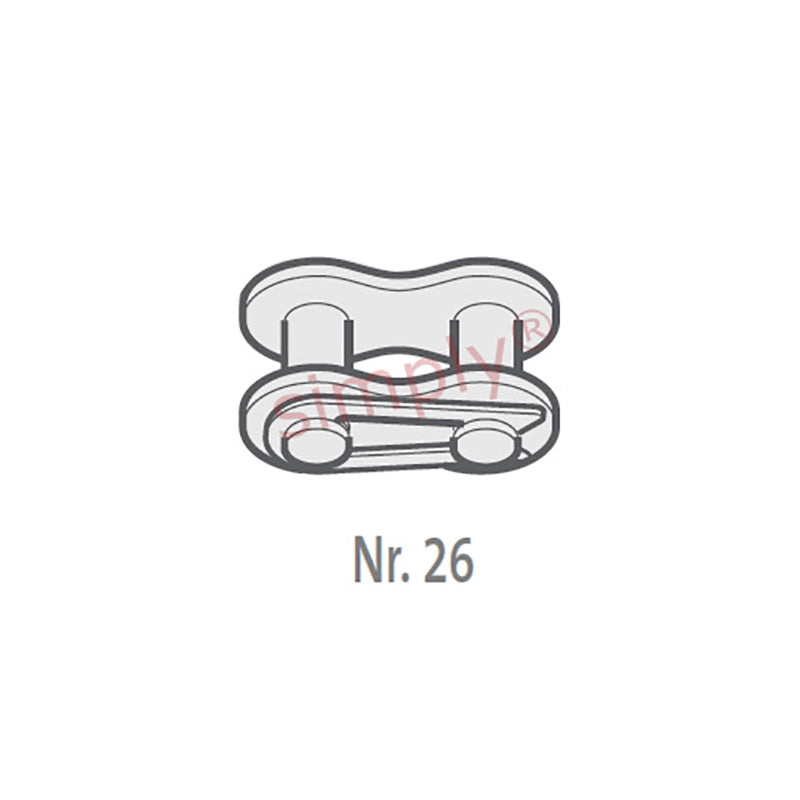

| Renold No. 26 European (BS) Simplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.65mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.7mm |
| Plate Width Inner max (E) | 1.65mm |
| Plate Width Outer max (F) | 1.65mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H1) | 19.6mm |
| Connecting Link Extension max (J) | 1.4mm |
| ISO606 Tensile Strength min | 22200 N |
| Weight | 0.13kg/m |
