SKU: 10802601-ROLL-RING

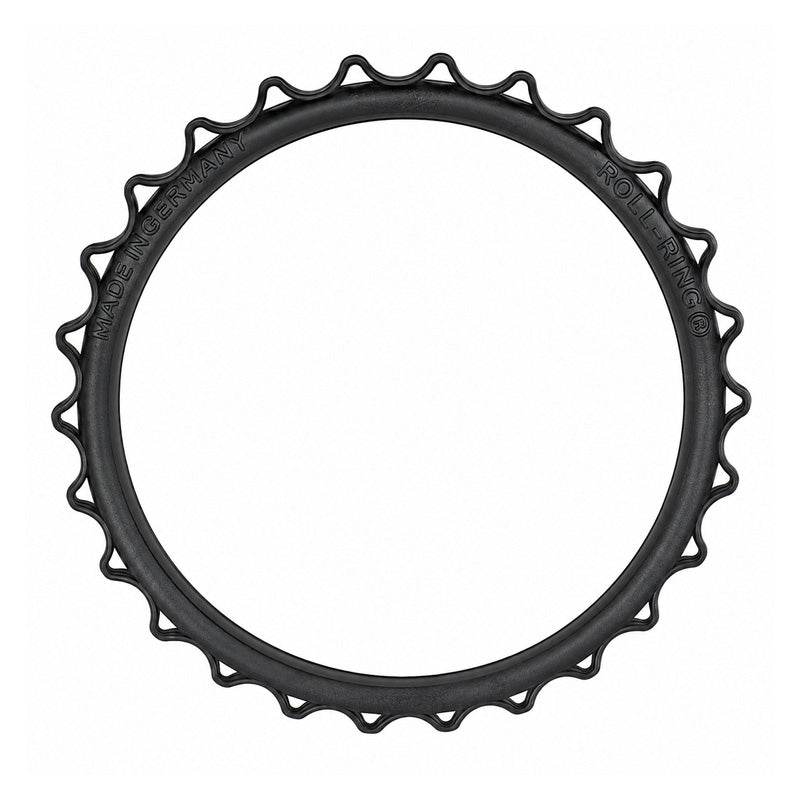

Renold 108-026-01 26 26 Tooth 08-B Roll Ring for 1/2 inch Pitch - Ambient Temperature -20 to+70 Deg C
Renold 108-026-01 26 26 Tooth 08-B Roll Ring for 1/2 inch Pitch - Ambient Temperature -20 to+70 Deg C
Regular price
$119.01
ex VAT
Regular price
Sale price
$119.01
ex VAT
In stock
Price Break
10+
$56.44
19+
$53.27
29+
$52.63
39+
$52.00
49+
$51.37
74+
$50.73
99+
$47.56
199+
$46.93
249+
$46.29
499+
$45.66
999+
$44.39
Quantity
Couldn't load pickup availability
Description
Description
|
Renold Roll Ring: The ROLL-RING® is designed to deform to an elliptical shape, when the drive is in use. This is due to ROLL-RING® being compressed completely absorbs any slack in the system. ROLL-RING® chain tensioners are maintenance free and can be fitted to a wide variety of chain drives with no installation downtime. The ROLL-RING® has been modified to the maximum permissible chain speed, wear period, chemical resistance and cold flexibility. They are therefore ideal for a wide spectrum of mechanical engineering. |
- Brand / Quality:
- Renold - High Quality
- Number of Teeth:
- 26
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical

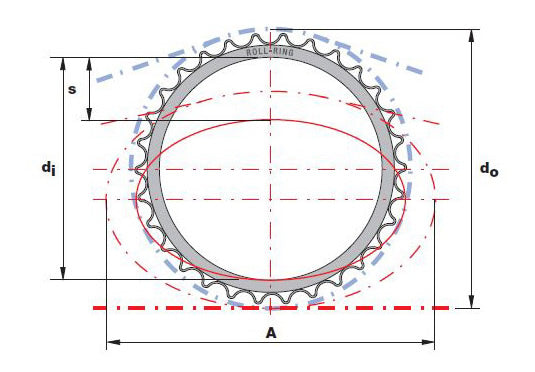

| do | 105.5mm |
|---|---|
| di | 87.5mm |
| s | 27mm |
| A | 135mm |
| D = do-s | 78.5mm |
| Chain Dimension - p x b1- inches | 1/2x5/16 |
| Max Static Expansive Force - N** | 13.4 |
| Maximum Chain Speed m/s | 7.5 |
| Ambient Temperature (°C) | -20 to+70 |
| Weight (kg) | 0.012 |
