SKU: 1080-75G-RHP
RHP 1080-75G Spherical Outer Full Width Bearing Insert 75mm Bore 140mm Outside Diameter
RHP 1080-75G Spherical Outer Full Width Bearing Insert 75mm Bore 140mm Outside Diameter
Regular price
$342.41
ex VAT
Regular price
Sale price
$342.41
ex VAT
In stock
Price Break
10+
$162.37
20+
$153.25
30+
$151.42
40+
$149.60
50+
$147.78
75+
$145.95
100+
$136.83
200+
$135.01
250+
$133.18
500+
$131.36
1000+
$127.71
Quantity
Couldn't load pickup availability
Description
Description
|
RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 140mm
- Style:
- 1080

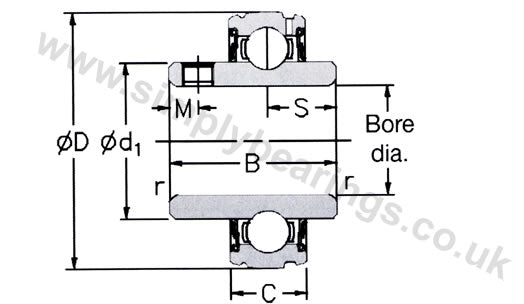

Technical
Technical
| Bore | 75mm |
|---|---|
| D | 140mm |
| C | 26mm |
| B | 82.55mm |
| s | 33.37mm |
| d1 | 98.5mm |
| M | 11.15mm |
| r | 2mm |
| Dynamic load Cr | 71500 N |
| Static load Cor | 54500 N |
| Rec max speed | 2150 rpm |
| Weight | 3.23 kg |
