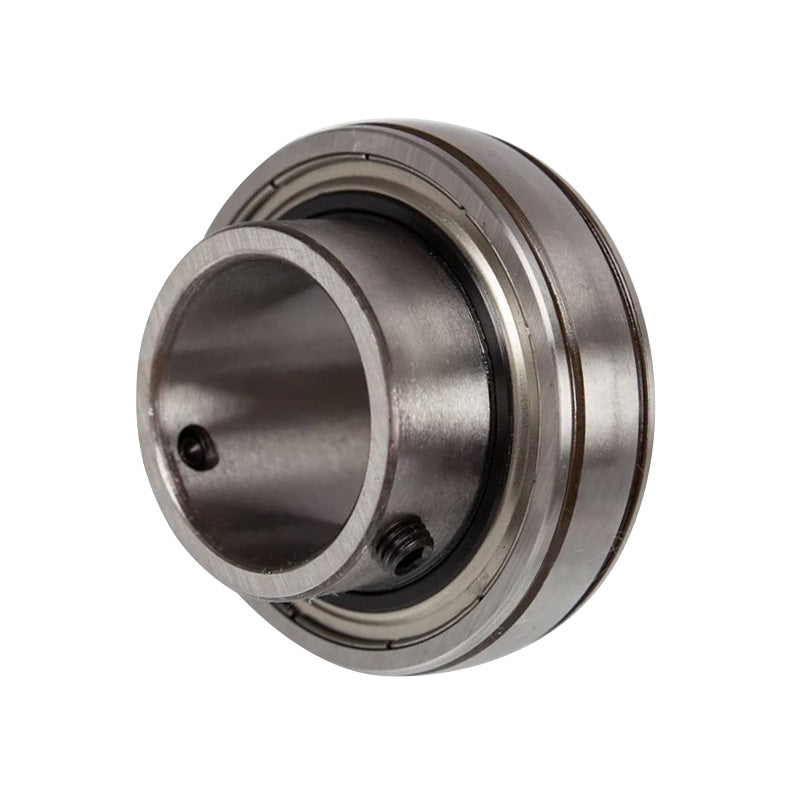

• RHP 1075-65G Spherical Outer Full Width Bearing Insert 65mm Bore 130mm Outside Diameter
1 1

SKU: 1075-65G-RHP

RHP 1075-65G Spherical Outer Full Width Bearing Insert 65mm Bore 130mm Outside Diameter

RHP 1075-65G Spherical Outer Full Width Bearing Insert 65mm Bore 130mm Outside Diameter
$287.15 ex VAT
$287.15 ex VAT
Sale Sold out

In stock

Price Break
10+ $136.34
20+ $128.68
30+ $127.15
40+ $125.62
50+ $124.09
75+ $122.55
100+ $114.90
200+ $113.36
250+ $111.83
500+ $110.30
1000+ $107.24

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing
Brand / Quality:
RHP - High Quality
Inside Diameter:
65mm
Outside Diameter:
130mm
Style:
1075
Technical
Bore 65mm
D 130mm
C 25mm
B 77.77mm
s 33.37mm
d1 92mm
M 12.75mm
r 1.5mm
Dynamic load Cr 66000 N
Static load Cor 49500 N
Rec max speed 2300 rpm
Weight 2.61 kg
