SKU: 1040-1.1/2GFS-RHP
RHP 1040-1-1/2GFS Flinger Seal Bearing Insert 1-1/2 inch Bore 80mm Outside Diameter
- Regular price
- $83.00 ex VAT
- Sale price
- $83.00
- Regular price
-
In stock
Quantity Price Breaks
10
$73.87
20
$69.72
30
$68.89
40
$68.06
50
$67.23
75
$66.40
100
$62.25
200
$61.42
250
$60.59
500
$59.76
1000
$58.10
SKU:
1040-1.1/2GFS-RHP
RHP 1040-1-1/2GFS Flinger Seal Bearing Insert 1-1/2 inch Bore 80mm Outside Diameter
- Regular price
- $83.00 ex VAT
- Sale price
- $83.00
- Regular price
-
Description
|
RHP T1000GFS Series Triple Sealed Bearing Insert: This insert type is a full width sealed bearing with a spherical outer diameter and are fitted with a flinger seal assembly on both sides of the bearing to prevent moisture and dust / particle ingress and help move debris away from the actual sealing arrangement, they re particularly suited to agricultural applications where harsh weather conditions and environments need to be tolerated for longer. They have the benefit of being re-lubricatable after installation. There are 2 grub screws set 120 degrees apart to allow tightening against the shaft after installation. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical

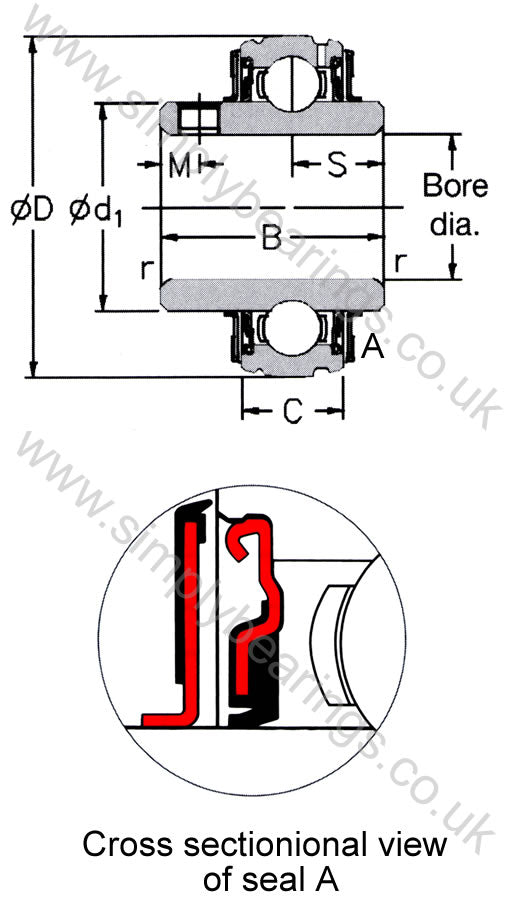

| Bore | = | 1-1/2 inch |
| D | = | 3.1496 inch |
| C | = | 0.709 inch |
| B | = | 1.938 inch |
| s | = | 0.752 inch |
| d1 | = | 2.075 inch |
| M | = | 0.313 inch |
| r | = | 0.039 inch |
| Dynamic load Cr | = | 32500 N |
| Static load Cor | = | 19900 N |
| Rec max speed | = | 4000 rpm |
| Weight | = | 0.64 kg |
