SKU: 1035-1.1/4GFS-RHP

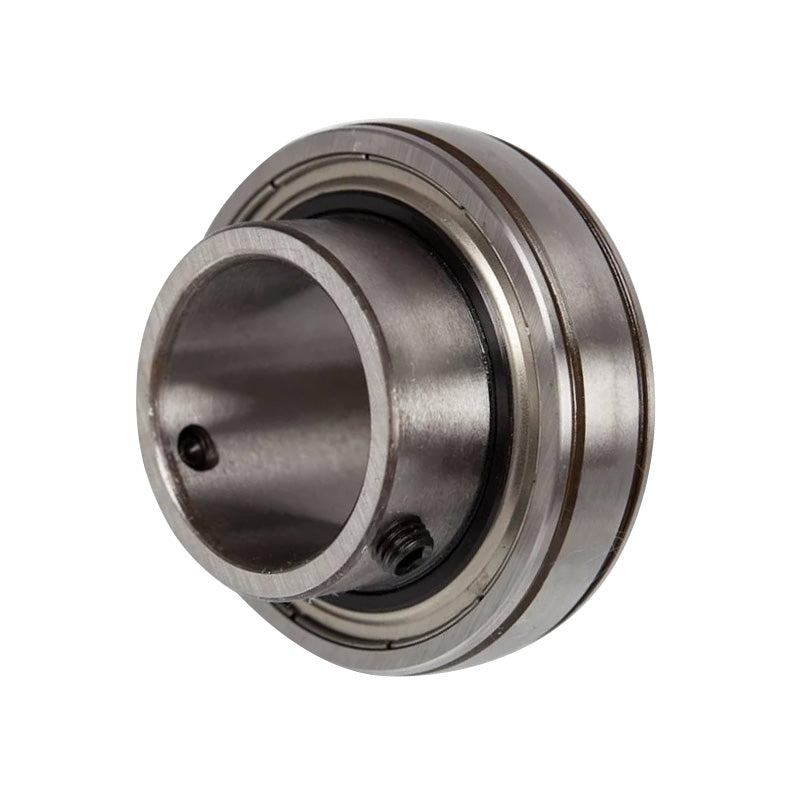

RHP 1035-1-1/4GFS Flinger Seal Bearing Insert 1-1/4 inch Bore 72mm Outside Diameter
RHP 1035-1-1/4GFS Flinger Seal Bearing Insert 1-1/4 inch Bore 72mm Outside Diameter
Out of stock
Description
Description
|
RHP T1000GFS Series Triple Sealed Bearing Insert: This insert type is a full width sealed bearing with a spherical outer diameter and are fitted with a flinger seal assembly on both sides of the bearing to prevent moisture and dust / particle ingress and help move debris away from the actual sealing arrangement, they re particularly suited to agricultural applications where harsh weather conditions and environments need to be tolerated for longer. They have the benefit of being re-lubricatable after installation. There are 2 grub screws set 120 degrees apart to allow tightening against the shaft after installation. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 72mm
- Style:
- 1035
Technical
Technical
| Bore | 1-1/4 inch |
|---|---|
| D | 2.8346 inch |
| C | 0.669 inch |
| B | 1.688 inch |
| s | 0.69 inch |
| d1 | 1.838 inch |
| M | 0.289 inch |
| r | 0.039 inch |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 0.51 kg |
