SKU: 1030-1.3/16G-RHP

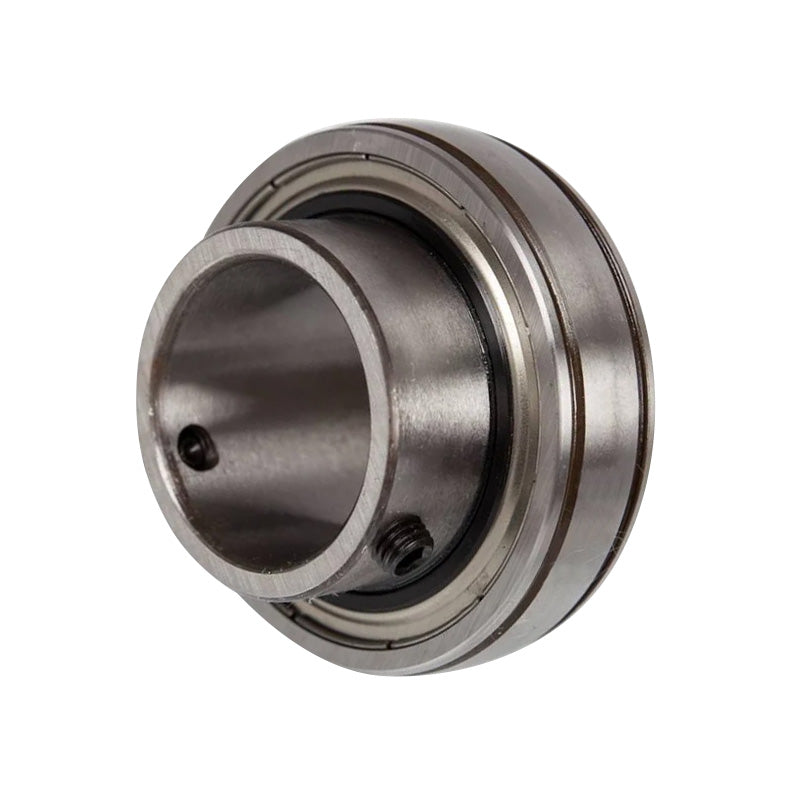

RHP 1030-1-3/16G Spherical Outer Full Width Bearing Insert 1-3/16 inch Bore 62mm Outside Diameter
- Regular price
- $55.30 ex VAT
- Sale price
- $55.30
- Regular price
-
In stock
Quantity Price Breaks
10
$49.22
20
$46.45
30
$45.90
40
$45.35
50
$44.79
75
$44.24
100
$41.48
200
$40.92
250
$40.37
500
$39.82
1000
$38.71
SKU:
1030-1.3/16G-RHP
RHP 1030-1-3/16G Spherical Outer Full Width Bearing Insert 1-3/16 inch Bore 62mm Outside Diameter
- Regular price
- $55.30 ex VAT
- Sale price
- $55.30
- Regular price
-
Description
|
RHP 1000 G Series: Full width bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
Technical
| Bore | = | 1-3/16 inch |
| D | = | 2.4409 inch |
| C | = | 0.63 inch |
| B | = | 1.5 inch |
| s | = | 0.627 inch |
| d1 | = | 1.575 inch |
| M | = | 0.23 inch |
| r | = | 0.039 inch |
| Dynamic load Cr | = | 19500 N |
| Static load Cor | = | 11300 N |
| Rec max speed | = | 5300 rpm |
| Weight | = | 0.37 kg |
