NAK 0.75x1.375x0.394 inch FKM Rubber Additional Lining Double Lip Rotary Shaft Oil Seal with Garter Spring TF - Allow 7-10 Days

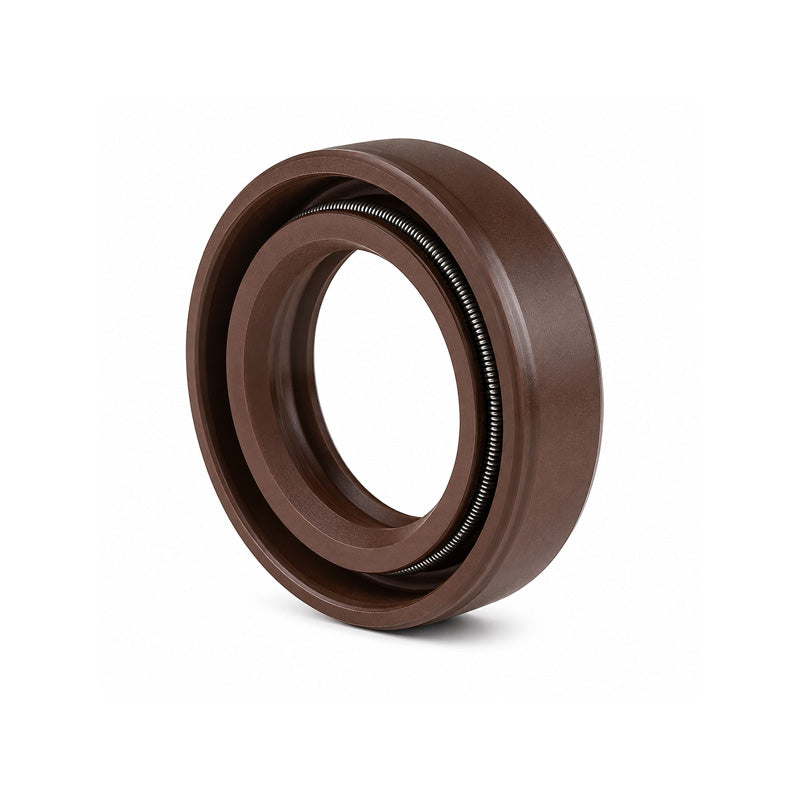

NAK TF FKM Oil Seals: Oil seals are used in a variety of different applications in which a rotating shaft is lubricated by oil or grease. They are engineered to facilitate the smooth operation of your equipment, serving as a barrier to prevent the leakage of oils and greases while also keeping foreign substances from entering. TF type seals have a special design featuring an additional inner rubber lining for better protection of the inner case. They have a rubber-covered outside diameter and features a sealing FKM rubber lip on the inside diameter as well as an external dust lip. The TF types feature a garter spring which allows some give to prevent a build-up of friction. (Seals under 5mm width may not always feature a spring.)
Benefits: High-temperature range, Chemical resistance, Higher wear resistance, Lower drag coefficient.

Brand / Quality:

NAK - High Quality

Inside Diameter:

19.05mm = 0.75 (3/4) inch

Outside Diameter:

34.93mm = 1.375 (1-3/8) inch

Width:

10.01mm = 0.394 inch

Seals / Shields:

FKM

Style:

TF

Colour:

Brown
