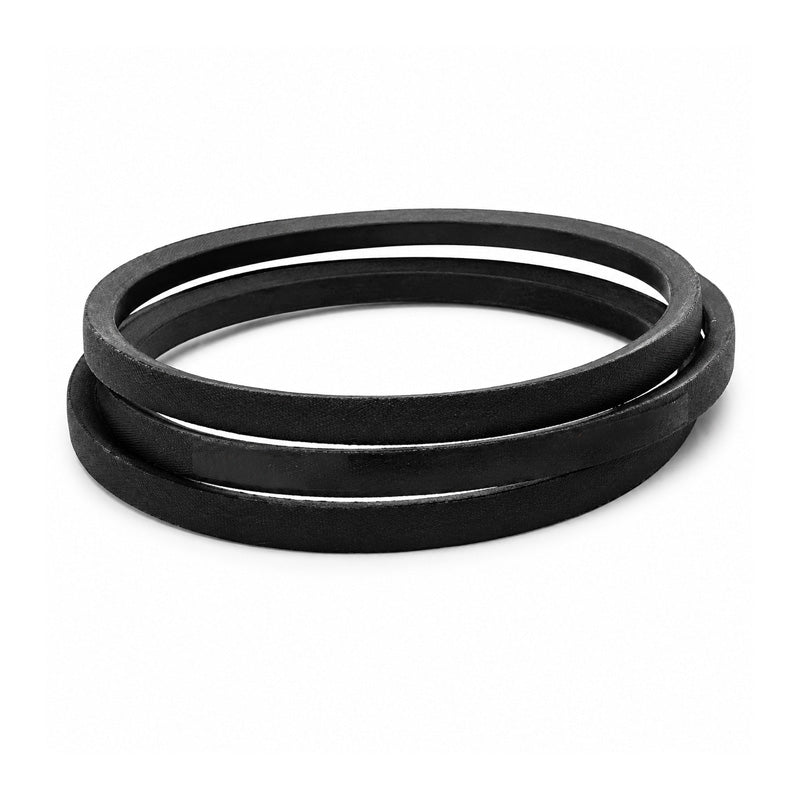

Z77 Major Brand Z-Section V-Belt

SKU: Z.77.VBELT.MB

Z77 Major Brand Z-Section V-Belt

$14.18 ex VAT
$14.18
ex VAT
In stock

Quantity Price Breaks

10 $12.62
19 $11.91
29 $11.77
39 $11.63
49 $11.49
74 $11.34
99 $10.64
199 $10.49
249 $10.35
499 $10.21
999 $9.93
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Z77 Major Brand Z-Section V-Belt
SKU: Z.77.VBELT.MB

Z77 Major Brand Z-Section V-Belt

$14.18 ex VAT
$14.18
ex VAT

Description

Z Section Classic Type V Belts: Major Brand longer life classic 10x6mm (3/8x1/4 inch) belts, primarily used in industrial drives. Recommended for use in special applications particularly where reverse idlers need to be used due to their smaller thickness.
Benefits: Universal classical profile to fit ISO 4183/4184 pulleys, Low stretch polyester tensile member, Oil, ozone and abrasion resistant, Temperature resistance: -20deg C to +70deg C, Static conductive to ISO 1813
Note: Matched Pairs: All V Belts conform to DIN 2215 (For Classic V Belts Z, A, B, C, D, etc) and DIN 7753 (For Wedge Type Belts SPZ, SPA, SPB etc) and ISO 4184 and as such will match taking into account dimensional tolerances. If you require belts from the same batch, please contact our Sales Support Team who will gladly assist you further.

Technical

Inside Length = 77 inch = 1956mm
Outside Length = 78.5 inch = 1994mm
Datum Length = 77.75 inch = 1975mm
